Cost-saving Electric Retrofit Kit For Used Manual Pallet Jack Operation Guide

Is your old Manual Hydraulic Pallet Truck worn out and labor-intensive to operate? Do not rush to discard it. You can simply Convert Manual Pallet Jack To Electric to boost warehouse handling efficiency with much less physical strain. This retrofit solution is far more cost-effective than purchasing brand-new electric pallet trucks. Below is the complete retrofit process.

Pre-retrofit Vehicle Inspection (Critical Pre-step)

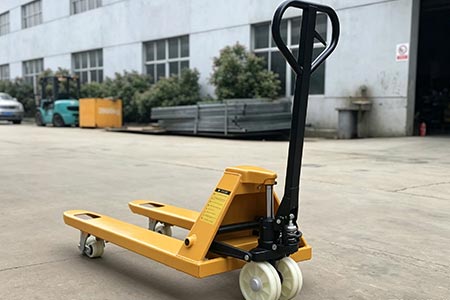

Check the condition of your used pallet jack first: intact frame without deformation or cracks, straight forks, leak-free hydraulic lifting system and smoothly rolling load wheels. Pallet jacks with severe frame rust or faulty hydraulic pumps are not recommended for direct retrofit; repair core parts first to eliminate structural risks after modification.

Step 1: Dismantle Original Rear Steering Components

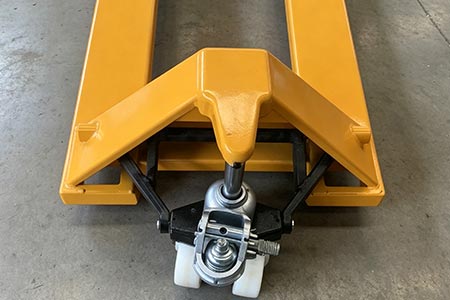

Use wrenches to remove original manual steering wheels and handle base fasteners. Clean the rear mounting flat surface to reserve space for the drive assembly. No cutting on the main frame beam is required during the whole process.

Step 2: Secure Drive Assembly & Battery Compartment

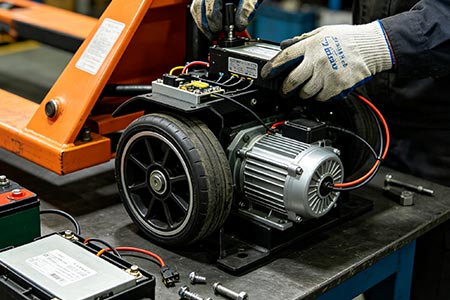

Match the supporting mounting steel plate to lock onto the rear main beam of the pallet jack, and fasten bolts tightly to fix the drive wheel unit. Place the battery compartment in the vacant rear area of the truck with anti-slip reinforcement to prevent shifting and shaking during travel.

Step 3: Connect Control Handle & Wiring

Replace the original manual handle with an electric variable-speed control handle. Route wiring along the frame cable trough, connect waterproof plugs between the controller and motor, and fasten all cables with clips to avoid extrusion and abrasion damage.

Step 4: Power On & Full Machine Commissioning

Switch on power to test forward, reverse and stepless speed regulation, as well as electromagnetic auto-brake on handle release and emergency stop function. Conduct repeated empty and light-load travel tests to check for abnormal noises, loose wiring or vehicle sliding. The unit can be officially put into service once debugging finishes.

Key Notes: Not All Manual Pallet Jacks Are Suitable For Retrofit

Ideal For Electric Conversion

Intact frame, forks and hydraulic system, only hard to push manually;

Single-shift short-distance daily transfer, flat warehouse aisles without long steep ramps;

Multiple old pallet jacks on site, limited budget for mass new equipment replacement.

Not Recommended For Retrofit

Severely worn body: deformed frame, cracked forks, frequent hydraulic oil leakage;

Two-shift heavy-duty continuous operation over 8 hours per day;

Working sites with gravel ground, long slopes and constant heavy-load climbing tasks.

In conclusion, you can follow the above procedures to convert your manual hydraulic pallet truck to electric. Feel free to contact us if you have any further questions about the retrofit kit or operation.
