Five problems to pay attention to when purchasing a manual forklift

0

Published by NEWTON April 12,2024

Many customers will feel a little uncomfortable when they first buy a hydraulic hand pallet trolley. It is not known which type of hydraulic hand pallet trolley is suitable for the production needs of their company.
Next, I sorted out the five factors that need to be considered when purchasing a hand pallet trolley!


1, the width of the manual hydraulic hand pallet trolley fork

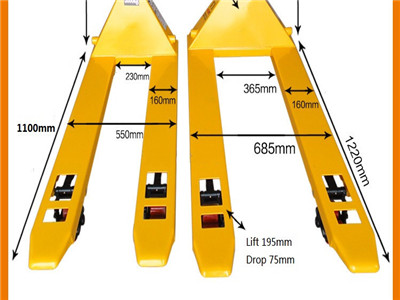

The width of the fork is selected according to the size of the daily use pallet. The general hand pallet trolley has a standard size hydraulic hand pallet trolley and a narrow manual hydraulic hand pallet trolley. The wide hydraulic hand pallet trolley is 685*1220mm, and the narrow hydraulic hand pallet trolley. The hydraulic hand pallet trolley is 550*1100mm.

hand pallet trolley 1


2, hydraulic hand pallet trolley load

In general, the international standard has 2.0t-2.5 tons -3.0t-5.0t, these four kinds of load capacity.


3, hydraulic hand pallet trolley fork lift height

The national standard pallet height is generally 100mm, so the minimum height of the national standard hydraulic hand pallet trolley is of course below this. When the general hydraulic hand pallet trolley is placed at the lowest point, the height is 85mm and 75mm. Of course, there are special low-profile hydraulic hand pallet trolley with a minimum height of 35mm. Low-level hydraulic hand pallet trolley are generally more expensive, and no special requirements are not recommended. Moreover, the hydraulic hand pallet trolleysteel plate that is lowered to 35mm is relatively thin, so the load is only 1.5 tons.

hand pallet trolley 1


4, hydraulic hand pallet trolley fork plate thickness

Generally better 3.0t hydraulic hand pallet trolley use 4mm steel plates, and the difference between the thickness of the steel plate and the paint thickness is less than 4mm, and some can only reach 3mm, so that the hydraulic hand pallet trolley cut corners The price advantage is very unreliable to consumers. Such hydraulic hand pallet trolley are prone to failure in subsequent use. In addition, the hydraulic hand pallet trolley has a standard 5.0t hydraulic hand pallet trolley steel plate thickness of 8mm or more, otherwise it is difficult to bear such weight.

5, hydraulic hand pallet trolley handling wheel sub-material

Hydraulic hand pallet trolley of wheel material depends on the condition of the work floor. In the case of smooth ground conditions, the hydraulic hand pallet trolley can choose nylon wheels, because the nylon wheels are relatively cheap, and the pulling is also relatively labor-saving. If the ground conditions are not good, the hydraulic hand pallet trolley can choose polyurethane wheels, which are more wear-resistant. If you don't want to damage the ground too much, it is best not to use nylon wheels. Polyurethane should be used. Because the nylon wheel is too hard, the polyurethane wheel is relatively soft.


The above content is provided by New Newton Co., Ltd., and I hope to help you. The company specializes in producing hydraulic hand pallet trolley, hydraulic forklifts, stackers and other products. If you need, please contact us.
