Main technical parameters of electric traction vehicles

0

Published by NEWTON July 24,2024

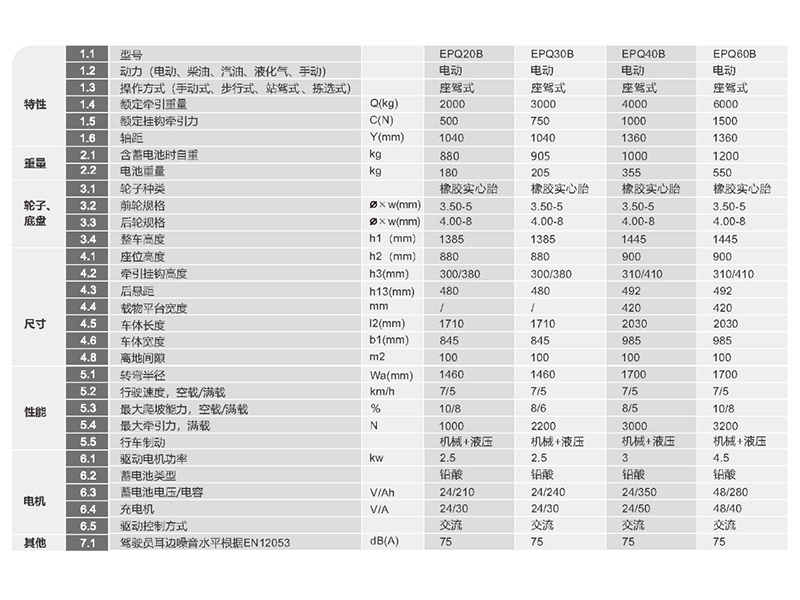

The technical parameters of the electric tractor indicate the performance and structural characteristics of the tractor, mainly including the performance parameters, size parameters and mass parameters of the tractor. The electric forklift manufacturer tells that the parameters of the electric tractor include the rated traction force, the maximum operating speed, the minimum turning half diameter, the channel width when turning a right angle, the approach angle, the departure angle, the minimum ground clearance, the wheelbase, and the dead weight, As shown in the following figure:

electric tractor

The technical parameters of an electric forklift indicate the performance and structural characteristics of the tractor, mainly including the performance parameters, size parameters, and quality parameters of the tractor. Electric forklift manufacturers believe that each of these parameters is important. Specifically, it includes rated traction, maximum running speed, minimum turning radius, channel width at right angle turn, approach angle, departure angle, minimum ground clearance, wheelbase, dead weight, etc.

Rated traction force of electric traction vehicle: The horizontal traction force that can be exerted by the traction hook height when the traction vehicle operates on a flat, dry concrete level road surface in an hourly working system.

electric tractor

Rated traction mass of electric traction vehicle: The maximum allowable traction mass of the traction vehicle at rated power

The maximum operating speed of an electric tractor: When the tractor is fully loaded, the maximum speed at which the electric forklift manufacturer can run uphill on a hard cement road surface with a slope of 1%.

The width of the passage when an electric tractor makes a right angle turn, and the minimum required passage width when the tractor makes a right angle turn. This width is one of the technical parameters that represents the maneuverability of the tractor; A tractor with good maneuverability requires a smaller channel width. When the tractor is towing a trailer, the minimum channel width for turning right angles is related to the trailer's following ability. If the trailer has good following ability, the channel needs to be narrow, otherwise it will be wide.

electric tractor

The approach angle, departure angle, approach angle and departure of the electric tractor are all technical parameters indicating the passing performance of the tractor.

The approach angle is a straight line drawn from the lowest part in front of the tractor and tangent to the outer circle of the front wheel. The angle formed by this tangent and the road plane is called the approach angle. The electric forklift manufacturer said that the departure angle is a straight line drawn from the lowest part behind the tractor and tangent to the outer circle of the rear wheel. The angle formed by this tangent and the road plane is called the departure angle.

In the minimum ground clearance, the minimum ground clearance refers to the distance from the lowest point fixed on the tractor body to the wheel grounding surface. It is the main parameter indicating the performance of the tractor through.

The L-axis in the wheelbase of electric traction vehicles is the horizontal distance between the centerline of the front and rear wheels of the vehicle.

< >
