Walking all-electric stacker

Walking all-electric stacker

1.5 ton Walking type full electric stacker rechargeable walkie stacker forklift
powered pallet stacker
full electric stacker 1
full electric stacker
walkie stacker forklift

1.5 ton Walking type full electric stacker rechargeable walkie stacker forklift

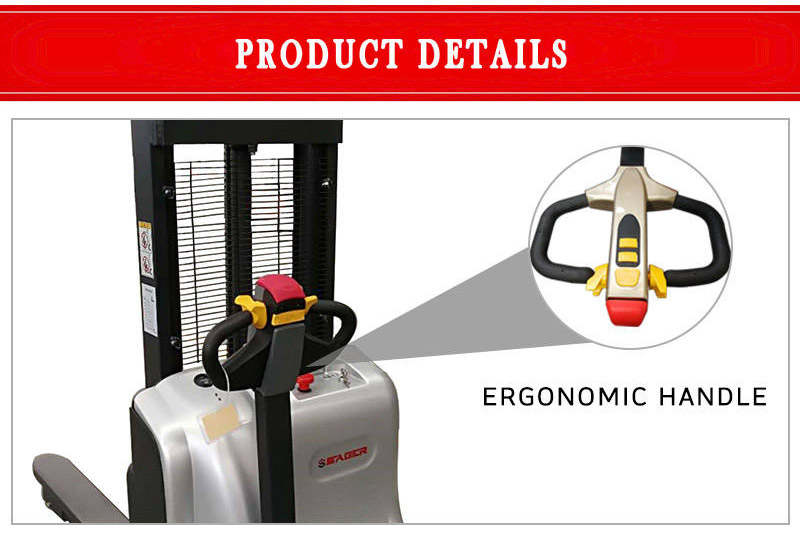

The walking type full electric stacker rechargeable stacker forklift can automatically walk and automatically lift. The powered pallet stacker is equipped with an EPS electronic power steering system for flexible operation. The walkie stacker forklift use

Product Specification:
  • Price : -
  • Min. Order : 1
  • PaymentTerms : T/T、L/C、Western Union、Alipay
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
iconMay you like
  1. Video
  2. Description
  3. Reviews
  4. Download

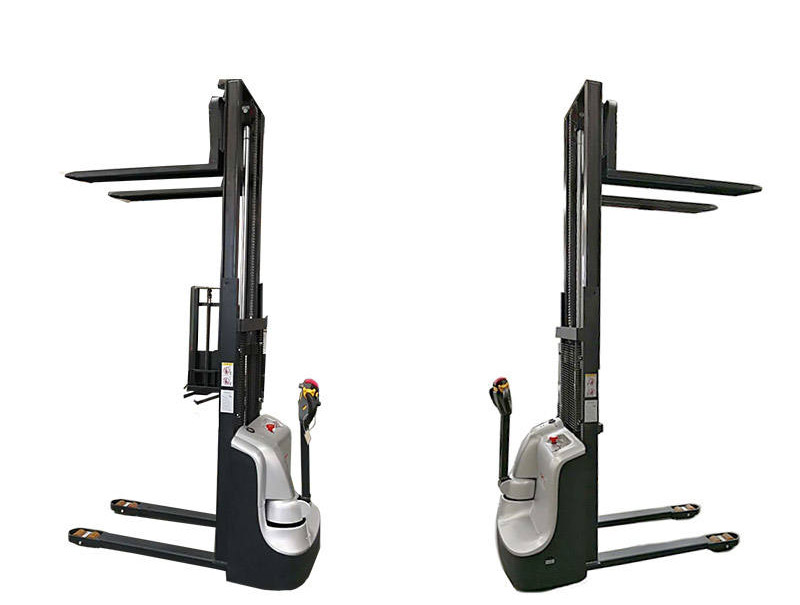

Walking type full electric stacker rechargeable walkie stacker forklift

powered pallet stacker 4

model LBCDD-15(C)-30-WA
Material

345B

Load (kg) 1500
Highest point load (kg)

900

Power type electric
Operation type walk
Form of steel C
Lifting height (mm) 3000
Frame static height (mm)

1990

After lifting the total height (mm)

3450

Load center distance (mm) 500
Fork minimum clearance from the ground(mm) 30
Fork clearance (mm) 90
Turning radius (mm) 1280
Minimum channel requirement (mm) 2000
Total body width (mm) 800
Overall length (mm) 1860
Fork width (mm) 560/700
Fork size ( mm) 1150*160*55
Leg length/width (mm) 925/100
Inside the leg (mm0 300/420
Lifting speed (full load / no load) (mm/ s) 100/150
Falling speed(full load / no load) (mm/ s) 150/130
Driving speed (full load / no load) (m / h) 4000/4200
Maximum gradient (full load / no load) (°) 3/11

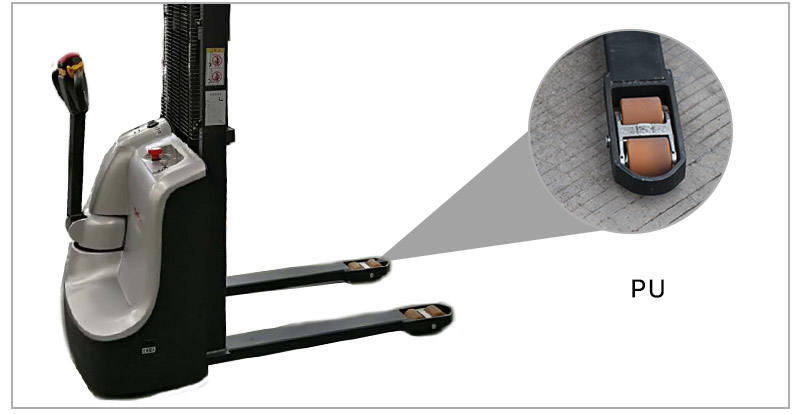

Tire Polyurethane
Tire size (drive wheel/load wheel/balance wheel) (mm) φ210*75/80*70/115*55
Battery (V/AH)

24/120

Battery size (mm) 361*170*250
Lift the motor

2.2kw

Walking motor 0.75KW
Hydraulic oil 46#
Steering type mechanical
Total Weight(KG) ≈500
Noise level dB (A) <74

powered pallet stacker 5

powered pallet stacker 6

full electric stacker

full electric stacker 2

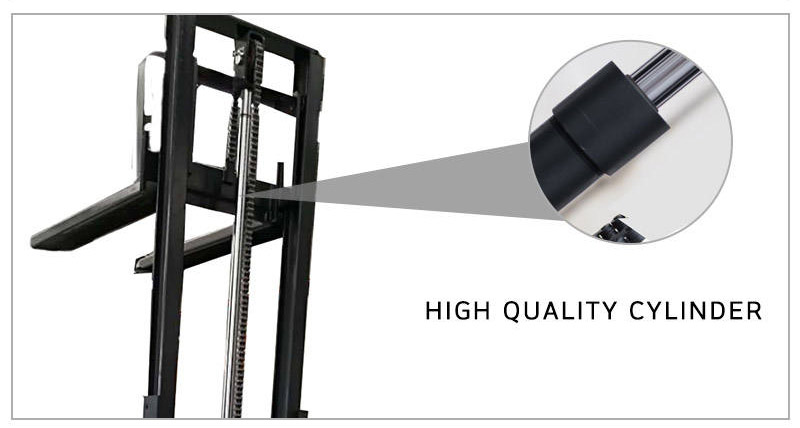

The walking type full electric stacker rechargeable stacker forklift can automatically walk and automatically lift. The powered pallet stacker is equipped with an EPS electronic power steering system for flexible operation. The walkie stacker forklift uses high-quality cylinders for long service life and reduced maintenance costs.

full electric stacker 3

full electric stacker 4

full electric stacker 5

full electric stacker 6

full electric stacker 7

The walking type full electric stacker rechargeable stacker forklift can automatically walk and automatically lift. The powered pallet stacker is equipped with an EPS electronic power steering system for flexible operation. The walkie stacker forklift uses high-quality cylinders for long service life and reduced maintenance costs.

walkie stacker forklift

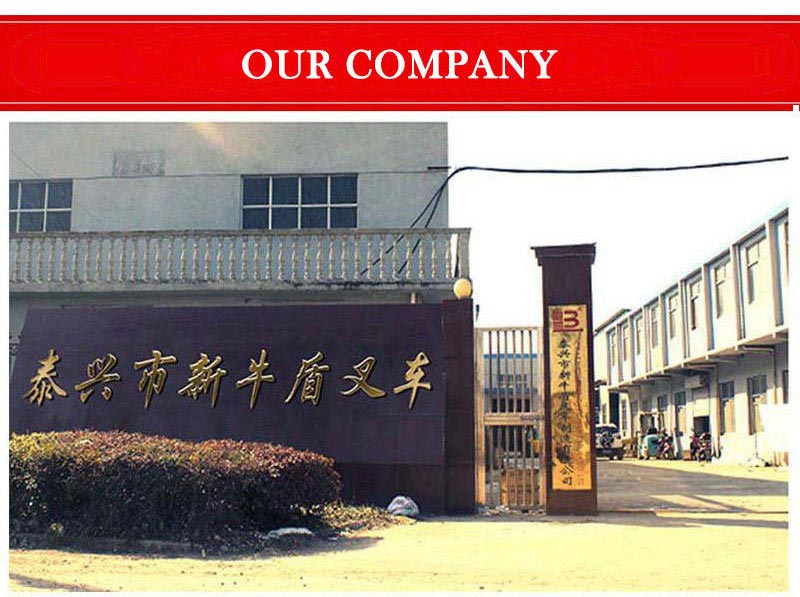

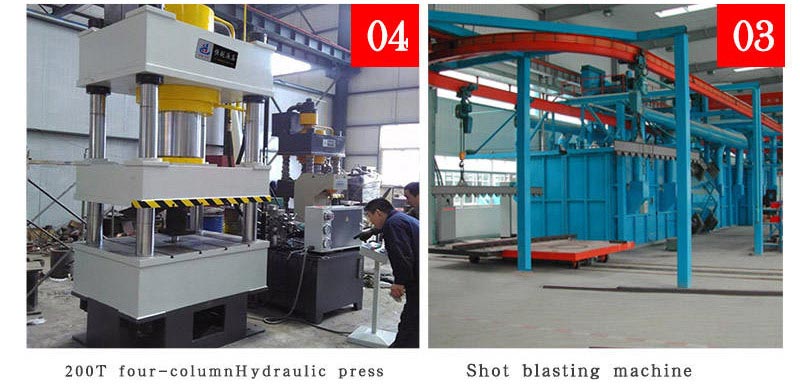

 NEW NEWTON(TAIZHOU) FORKLIFT TRUCK CO.,Ltd. is a subsidiary of Tianjin Rixu Trading Co., Ltd. It is a high-tech enterprise. The brand NEW NEWTON is a newly launched series of warehousing and logistics equipment brand in recent years. The factory covers an area of more than 4,000 square meters and has a production workshop of more than 2,000 square meters. The company is engaged in the sales of forklift trucks for nearly 20 years and has been working on forklift production for nearly 10 years. In the past ten years, we have continuously developed and expanded our products. Nowadays, the mature new Newton has made customers more worry-free and save money. The company has high-tech technicians and has 100T hydraulic presses, large EDM cutting and machining centers, welding robot, large surface treatment machines, drying lines and fully automatic spray lines imported from the UK; the company’s equipment production capacity reaches the production level of 1 million sets of series of trucks and stackers.

walkie stacker forklift 1

walkie stacker forklift 2

walkie stacker forklift 3

walkie stacker forklift 4

walkie stacker forklift 5

walkie stacker forklift 6

walkie stacker forklift 7

powered pallet stacker

powered pallet stacker 1

powered pallet stacker 2



1. How about the sample policy?

We can accept sample order for testing quality. But sample and express charge should be on customer’s account.

2. How long does it take to execute my order?

Please tell us the quantity and model number of the products you are about to order, so that we will give you a detailed schedule.

3. How can I know the completion of my order?

Upon receipt of the deposit, we will immediately arrange for the shippment, after the order is completed, we will also send you the detection images of your order before delivery for you to confirm.

4. Can you arrange to deliver the goods for us?

Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term, the buyer also can choose Air-transport or Ocean shipping for your requirement. When your orders reach your local nearest Sea port or River Port, the logistics company will inform you.

5. Can you guarantee your products?

Yes, we guarantee your 100% satisfaction on all our products.

Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.

6. Can I visit your company?

Of course. We always with great pleasure at your service. We have a showroom in Tianjin, China. If you want to order our products and visit our company, please contact us to make an appointment.

7. Do you offer custom design?

Custom design is surely available. We have very rich experience in customizing shelves.

powered pallet stacker 3
