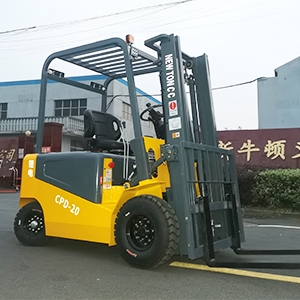

Four-wheel electric forklift

Four-wheel electric forklift

Three-way electric stacker lift truck with narrow passages
electric pallet jack stacker
lift rite pallet jack 1
lift rite pallet jack
stacker lift truck

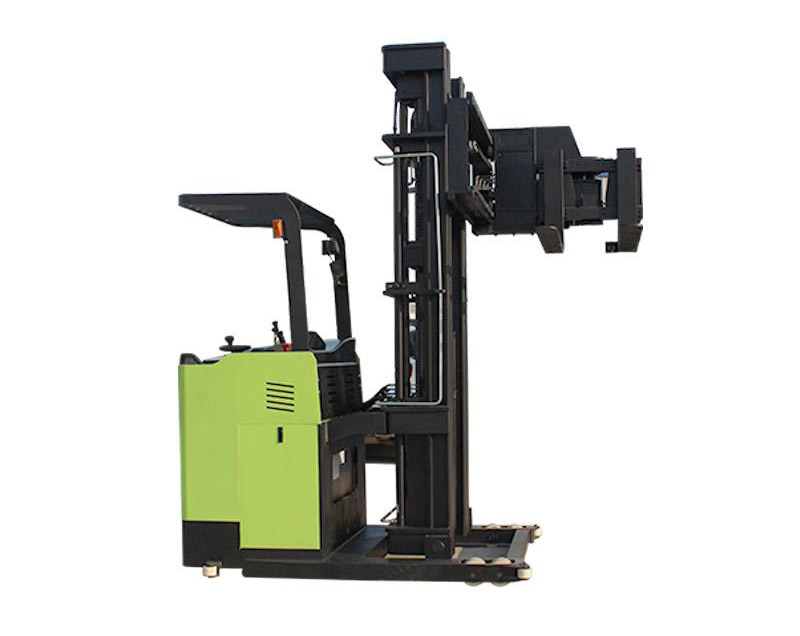

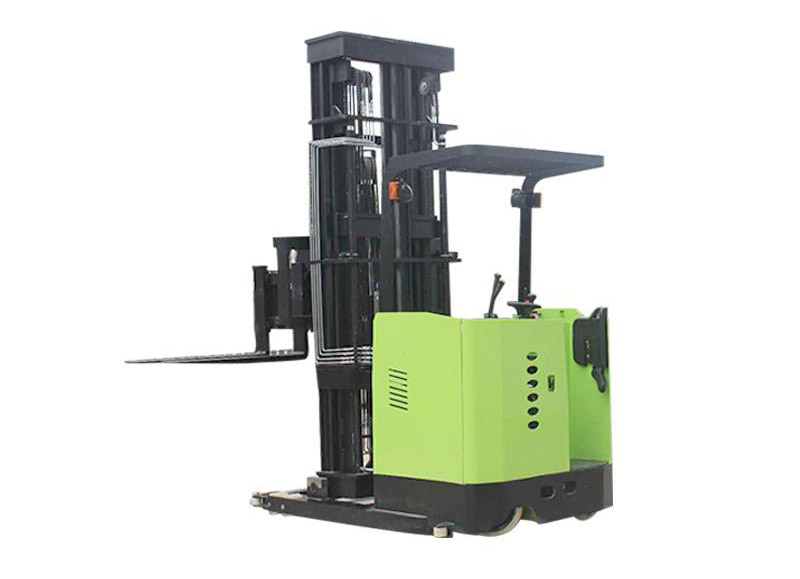

Three-way electric stacker lift truck with narrow passages

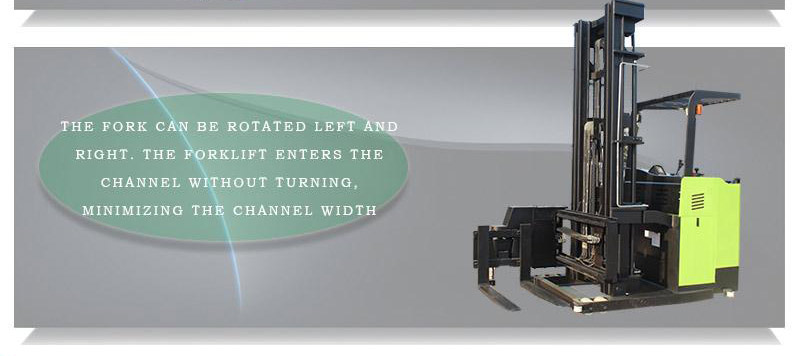

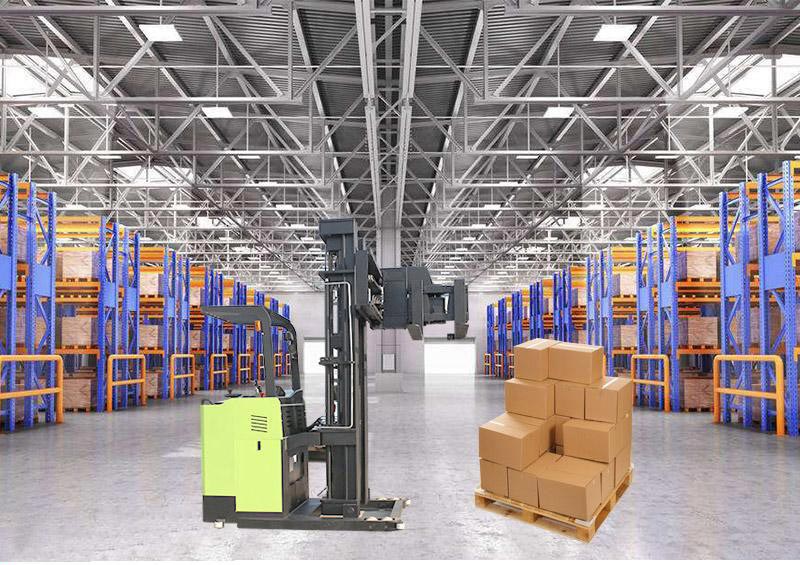

The three-way electric stacker lift truck with narrow passages has an EPS electronic steering system that requires less channel width. The three-way electric pallet jack stacker forklift is equipped with a large capacity battery and has a long battery lif

Product Specification:
  • Price : -
  • Min. Order : 1
  • PaymentTerms : T/T、L/C、Western Union、Alipay
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
iconMay you like
  1. Video
  2. Description
  3. Reviews
  4. Download

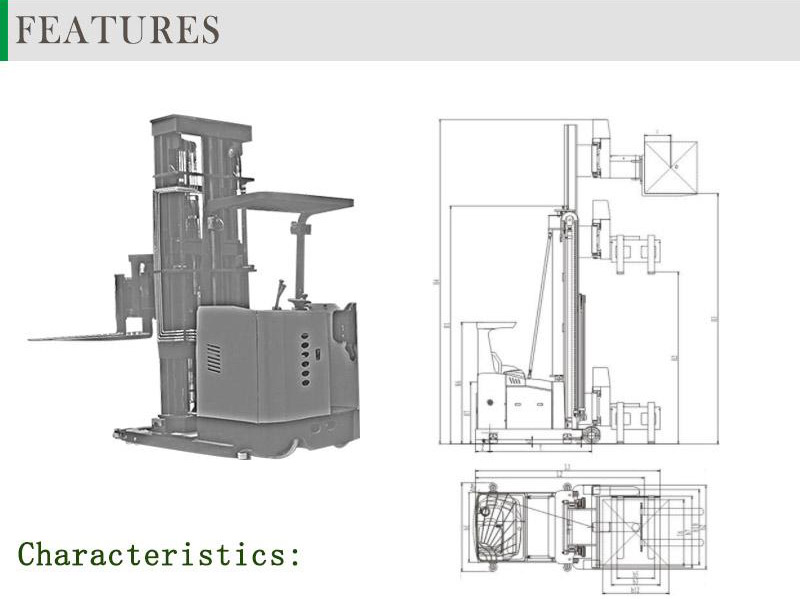

Three-way electric stacker lift truck with narrow passages

electric pallet jack stacker 4

Operation type Standing posture
Power type Full-Electric
Capacity KG 1500
Max Lifting Height H2(mm) 7000
Load center C(mm) 500
Wheel type   Pu solid tire
Fork dimensions mm 1070*122*40
Fork spread mm 244-650
Overall length including fork L(mm) 3795/2680
Overall width S(mm) 1550
Guide wheel width mm 1550
Channel guide widtf mm 1600
Channel guide heigth mm 120
Channel shelf width mm 1760(1200*1200 pallet)
Main channel width mm 3600
Height--Mast Lowered H1(mm) 3210
Maximum height when the fork is lifted mm 7965
Turning radius (outer) Wa(mm) 2017
The height of overhead guards   2280
Min ground clearance mm 35
Max travel speed Km/h 7.0/8.0
Lifting speed mm/s 215/275
Total weight KG 5000
Driving Wheel mm Ø382*142
front wheel mm Ø145*100
Balance wheel mm Ø180*76
Battery capacity V/Ah 48/400
Charger-Intelligent V/A 48/50
Driving motor Kw 6.5(AC)
Lifting motor Kw 7.5(DC)
Steering control type   Electric steering
Walking Adjustable Type   Holzer type accelerator
brake   electromagnetic

electric pallet jack stacker 5

electric pallet jack stacker 6

lift rite pallet jack

lift rite pallet jack 1

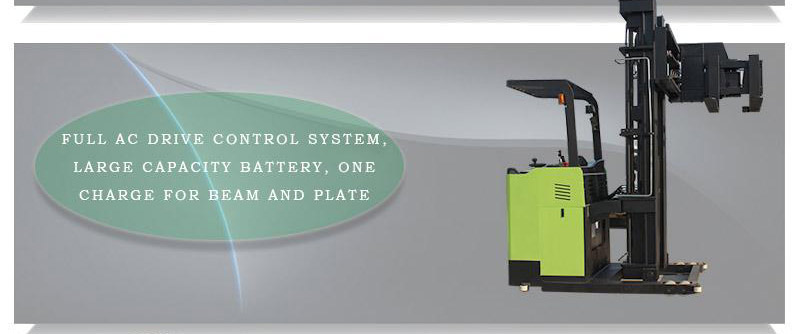

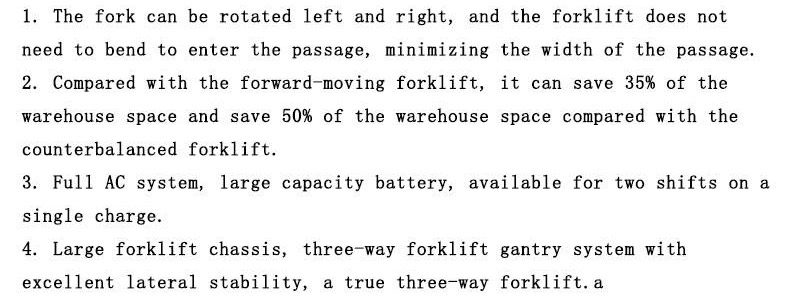

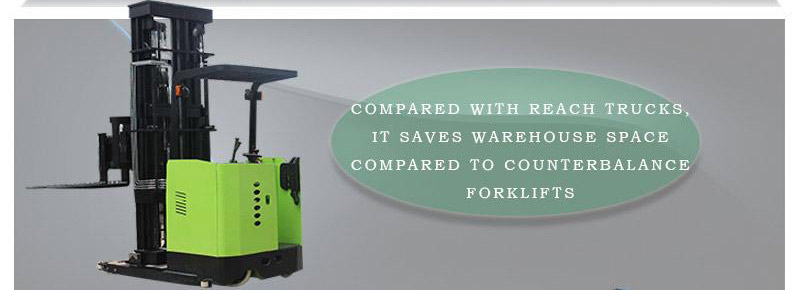

The three-way electric stacker lift truck with narrow passages has an EPS electronic steering system that requires less channel width. The three-way electric pallet jack stacker forklift is equipped with a large capacity battery and has a long battery life. The three-way electric lift rite pallet jack forklift uses a full AC power system.

lift rite pallet jack 2

lift rite pallet jack 3

lift rite pallet jack 4

lift rite pallet jack 5

lift rite pallet jack 6

stacker lift truck

The three-way electric stacker lift truck with narrow passages has an EPS electronic steering system that requires less channel width. The three-way electric pallet jack stacker forklift is equipped with a large capacity battery and has a long battery life. The three-way electric lift rite pallet jack forklift uses a full AC power system.

stacker lift truck 1

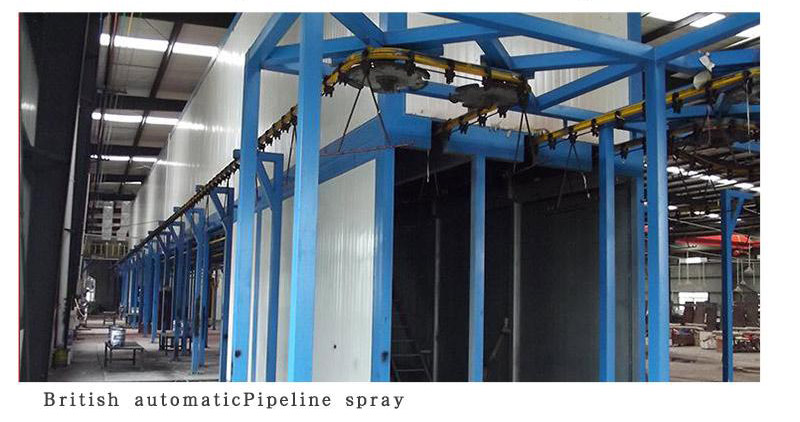

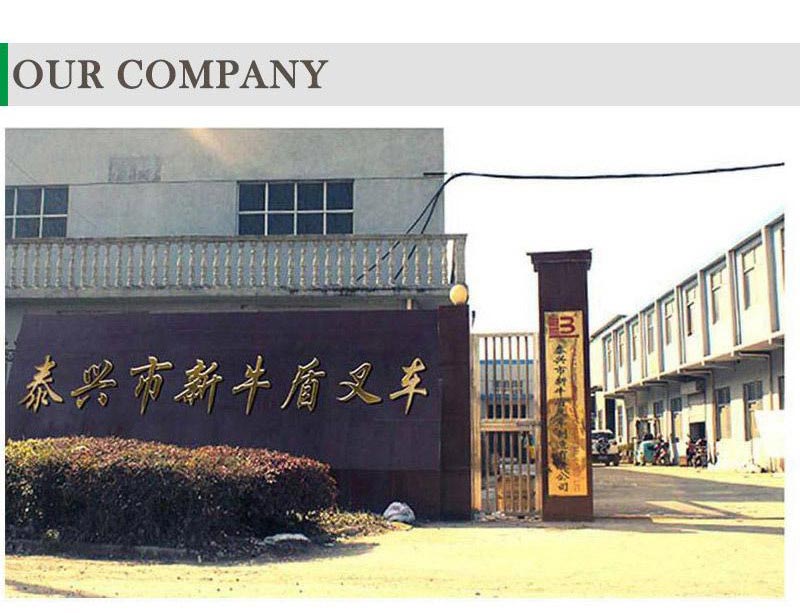

NEW NEWTON(TAIZHOU)FORKLIFT TRUCK CO. TLD is located in Taixing City, Jiangsu Province. It covers an area of about 4,000 square meters and has about 20 high-tech talents. It has more than 15 years of experience in storage equipment and has large-scale automatic assembly line equipment. It is specialized in electric storage equipment and forklifts. A global trading company that designs, manufactures and services, specializing in electric forklifts and vans. Strategic cooperation with nearly 15 large-scale commercial and logistics companies at home and abroad. The company has passed the ISO quality system international standard certification; obtained the "GS" and "CE" certification and the "TX" certification for various products; it has a number of patents granted by the State Intellectual Property Office.  It can produce 1 million products per year and has served more than 1000 customers worldwide. It can provide customers with “one-stop” services including design, manufacturing, testing and assembly. After 5475 days, our products have been praised as “0” by customers. "Safety accident", "0 emission energy saving", with "9000H quality assurance" and "7 * 24H after-sales service" high-quality products. The company regards “letting manpower to be a history” as our driving force. On this basis, we are constantly pursuing innovation and continuous breakthrough to provide more commercial value and environmental protection power storage equipment for the global market. NEW NEWTON has been widely received and favored by domestic and foreign customers for its beautiful appearance, high quality and comprehensive service, safe and reliable, and cost-effective products. The products have been exported to many countries and regions around the world. The international, professional and green standards have become the most respected forklift brand in the world. Our electric forklifts use zero discharge and zero pollution. The first time we truly solve the environmental problems of the forklift industry, it is especially suitable for the high environmental protection requirements of food, medicine, supermarket, cold chain, airport and other industries.

stacker lift truck 2

stacker lift truck 3

stacker lift truck 4

stacker lift truck 5

stacker lift truck 6

electric pallet jack stacker 1

electric pallet jack stacker

electric pallet jack stacker 2



1. How long is the warranty time?

    10000 working hours or 12 month, whichever comes first.

    2. How can I get the after-sales service?

    The global service network is still under construction, but if you have any questions or need

    professional support, you can contact us. We will try our best to solve your problem within 24

    hours and arrange for the delivery of spare parts within 48 hours.

    3. How about your warranty item?

    We can support you with original spare parts, and email or telephone assistance in the following

    days. If necessary, our experience engineer can go abroad to your place for technical support.

    4. How about your product quality?

    All our products are form the original manufactures and the quality is 100% guaranteed.

    5. Can I be your agent in my country?

    It’s OK if the order quantity is appropriate. We looks forward to long-term cooperation.

    6. What information should I let you know if I want to get a quotation?

    Lifting capacity

    Size

    Load

    Features

    Would be better if you have drawings of your piant.

   7. What about the lead time for mass production?

    Hoestly, it depends on the order quantity and specification and the season you place the order.  Within 30 days will be ok. Generally speaking, we suggest you start inquiry two months before the date.
