Ride on pallet truck with improved safety factor and energy saving

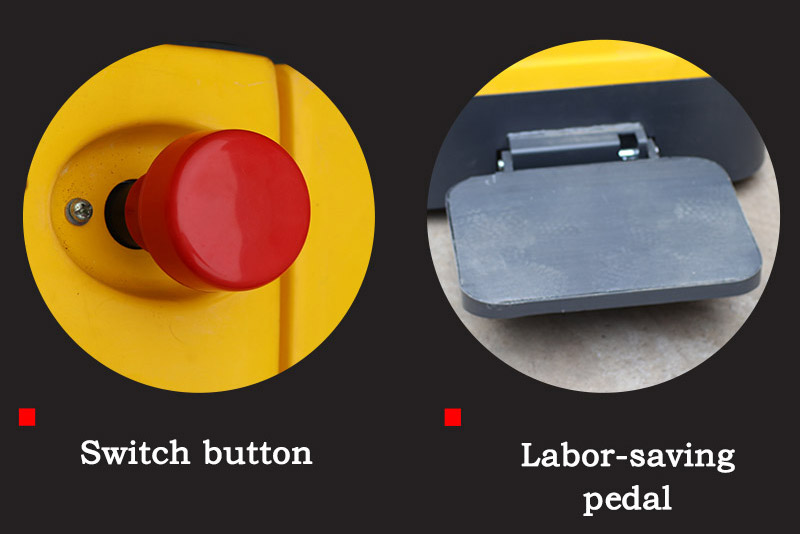

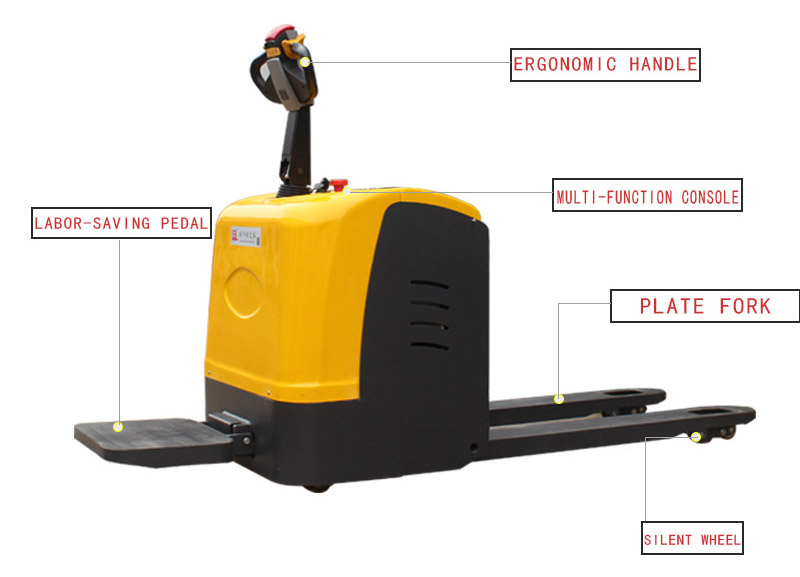

The electric driving handle of the ride on pallet jack is designed with clear functions, 99% fits the ergonomic design, the shock absorber stands the pedal, the operation is comfortable, and the fatigue is 0.

Product Specification:
  • Price : -
  • Min. Order : 1
  • PaymentTerms : T/T、L/C、Western Union、Alipay
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
iconMay you like
  1. Video
  2. Description
  3. Reviews
  4. Download

Ride on pallet truck with improved safety factor and energy saving

ride on pallet truck

New Newton (Taizhou) forklift truck co.,ltd main products include forklifts, stackers, trucks, lifting platforms and so on. The company has grown into a well-known warehousing, logistics and handling vehicle manufacturer in China. Its product line has expanded from light and small handling vehicles to electric storage vehicles, and has taken a leading position in the mid-range and mid- to high-end markets of industrial vehicles. The company has developed a number of new products with independent intellectual property rights. The technology level has reached the domestic leading level, and the products with beautiful appearance, high quality and all-round service, safe and reliable, and high cost performance have been widely concerned and favored by domestic and foreign customers. The products have been exported to more than 50 countries and regions around the world.

ride on pallet truck 1

ride on pallet truck 2

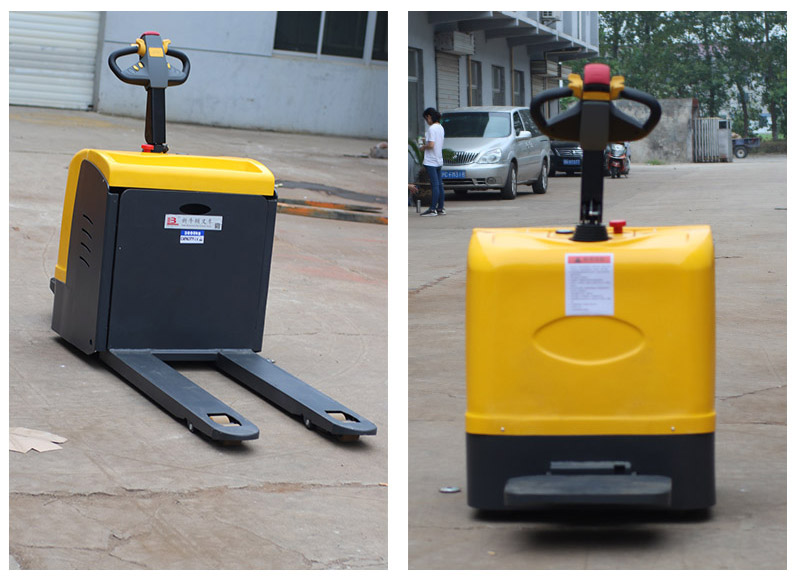

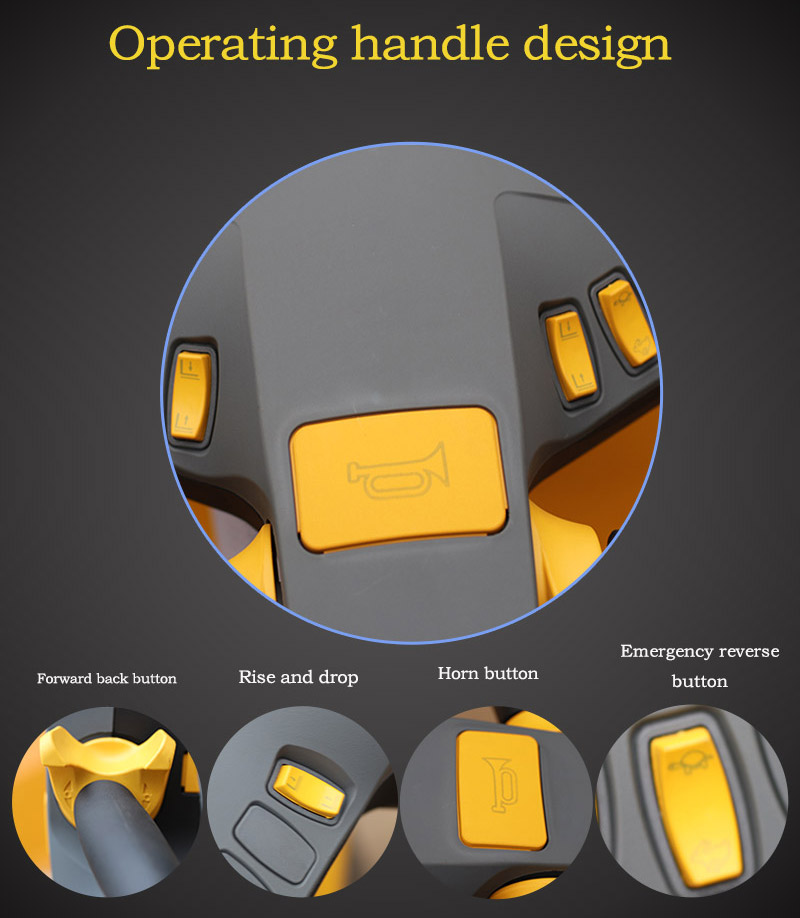

The electric driving handle of the ride on pallet jack is designed with clear functions, 99% fits the ergonomic design, the shock absorber stands the pedal, the operation is comfortable, and the fatigue is 0. The reverse reverse button of the parking-type ride on pallet truck improves the safety factor of 99%. The electric pallet mover adopts a polyurethane regenerative wheel with less impurities, heavy load and is not easy to damage. The motor of the ride on pallet jack is dust-proof and waterproof, which makes the brakes and motors more durable and reliable.

ride on pallet truck 3

model

LBCBD-20/25/30/40-540/685-SB

CBD-20/25/30/40-540/685-SB

Load (kg) 2000/2500/3000/4000
Maximum fork height from the ground (mm)

210

195

Fork down the surface from the ground (mm)

85

<\90

Load center distance (mm) 600
Wheelbase center (mm)

1305/1355

1350

Fork minimum clearance from the ground(mm)

30

20

Turning radius (mm)

1730/1770

2200

Minimum channel requirement (mm)

2120/2170

2400

Total body width (mm)

800

820

Total body length (mm)

1920/1970

1880

Total body height (include handle)/(exclusive handle) (mm) 955/1350
Length of wagon (mm)

790

680

Fork width (mm)

540/685

550/685

Fork size ( mm)

1150*185*55/1200*185*55

1200*180*60

Lifting speed (full load / no load) (mm/ s)

60/56

35/23

Falling speed (full load / no load) (mm/ s)

57/59

30/38

Driving speed (full load / no load) (km / h)

8/6

5.5/4.5

Maximum gradient (full load / no load) (mm / s)

7/5

8/5

Size of wheel (front /rear/ balance) (mm) 250*80/80*60/125/50
Number of front/rear wheels (x=drive 4/2+x
Front track (mm) 505
Rear track (mm)

700

690

Tire Polyurethane
Driving method Station drive
Braking method Electromagnetic brake

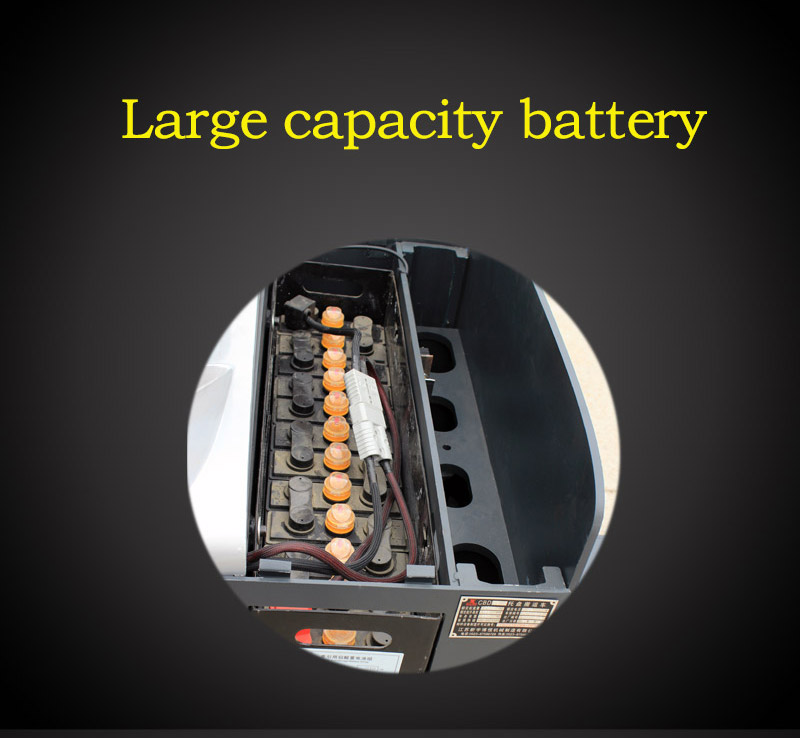

Battery (V/AH) 24V/210AH
Battery weight (kg)

260

120

Lift the motor

AC 2KW

DC 2.2KW

Walking motor

AC 1.5KW

DC 1.2KW

Hydraulic oil 46#
Total Weight(KG)

≈790

≈680

Noise level dB (A) <70

ride on pallet truck 4

electric pallet mover

electric pallet mover 1

electric pallet mover 2

electric pallet mover 3

electric pallet mover 4

ride on pallet jack

ride on pallet jack 1

The electric driving handle of the ride on pallet jack is designed with clear functions, 99% fits the ergonomic design, the shock absorber stands the pedal, the operation is comfortable, and the fatigue is 0. The reverse reverse button of the parking-type ride on pallet truck improves the safety factor of 99%. The electric pallet mover adopts a polyurethane regenerative wheel with less impurities, heavy load and is not easy to damage. The motor of the ride on pallet jack is dust-proof and waterproof, which makes the brakes and motors more durable and reliable.

ride on pallet jack 2

ride on pallet jack 3

FAQ

1. How long is the warranty time?

    10000 working hours or 12 month, whichever comes first.

    2. How can I get the after-sales service?

    The global service network is still under construction, but if you have any questions or need

    professional support, you can contact us. We will try our best to solve your problem within 24

    hours and arrange for the delivery of spare parts within 48 hours.

    3. How about your warranty item?

    We can support you with original spare parts, and email or telephone assistance in the following

    days. If necessary, our experience engineer can go abroad to your place for technical support.

    4. How about your product quality?

    All our products are form the original manufactures and the quality is 100% guaranteed.

    5. Can I be your agent in my country?

    It’s OK if the order quantity is appropriate. We looks forward to long-term cooperation.

    6. What information should I let you know if I want to get a quotation?

    Lifting capacity

    Size

    Load

    Features

    Would be better if you have drawings of your piant.

   7. What about the lead time for mass production?

    Hoestly, it depends on the order quantity and specification and the season you place the order.  Within 30 days will be ok. Generally speaking, we suggest you start inquiry two months before the date.
