1 ton forward-shifting pile height station operation increased by 2.5M
warehouse stacker forklift (1)
warehouse stacker forklift (2)
warehouse stacker forklift (3)
warehouse stacker forklift (4)
warehouse stacker forklift (5)
warehouse stacker forklift (6)

1 ton forward-shifting pile height station operation increased by 2.5M

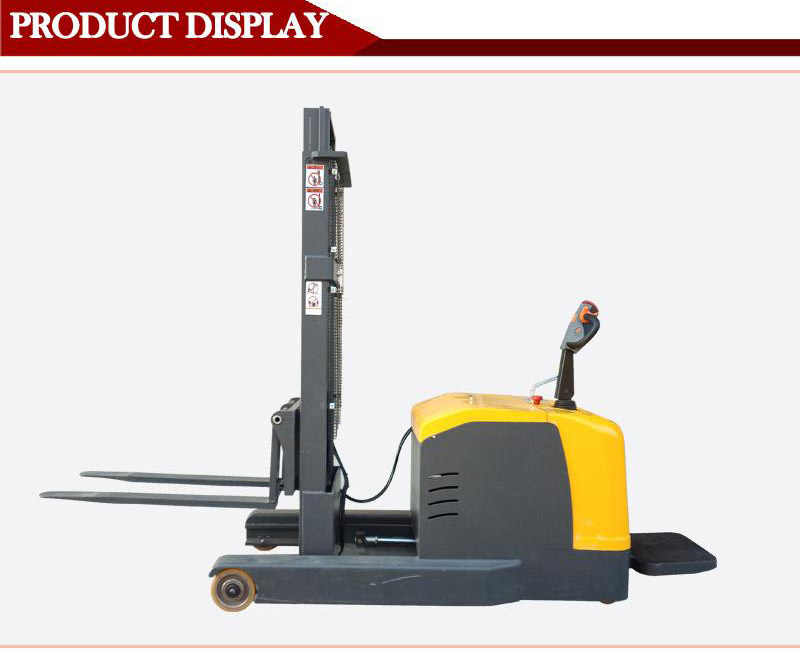

The forward-moving stacker pallet truck forklift has a compact structure, flexible operation, and a gantry forward design. The overall length of the forward-moving stacker straddle pallet jack is shorter than that of the counterweight stacker.

Product Specification:
  • Price : -
  • Min. Order : 1
  • PaymentTerms : T/T、L/C、Western Union、Alipay
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
iconMay you like
  1. Video
  2. Description
  3. Reviews
  4. Download

1 ton forward-shifting pile height station operation increased by 2.5M

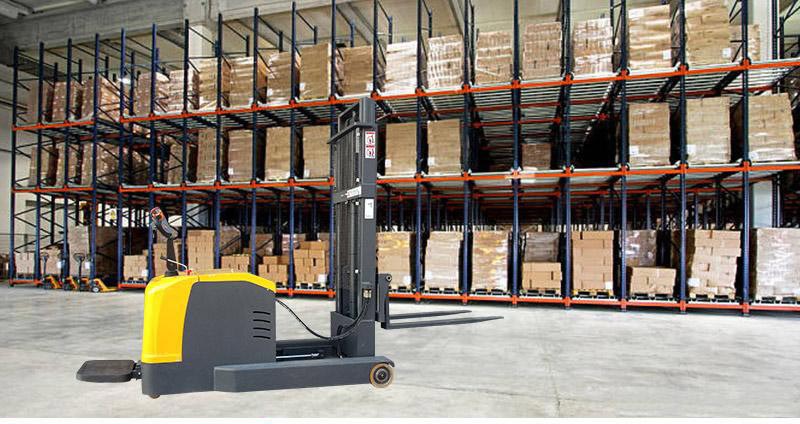

straddle pallet jack 4

model   LBCQD-10(C/H)-25-SB
Load KG 1000
Gantry steel   C/H
Lifting height mm 2500
Gantry height mm 1840
Gantry lifting height mm 3260
Load center distance mm 500
Front and rear tilt angle ° 3/6
Forward distance mm 500
Wheelbase center ground clearance mm 40
Turning radius mm 1500
Minimum channel requirement mm 2560
Total length (no pedals) mm 2260/2360
Overall width mm 1000
Fork adjustable width mm 210-680
Number of front/rear wheels (*=drive wheel)   2/2+1*
Front/rear wheel size mm φ250*80/200*80/125*50
Track mm 1450
Rear wheel track mm 950
Fork size (forged) mm 1070*120*35
The fork lowers the height from the ground mm 50-110
Lifting speed (no load / full load) mm/s 0-0.12/0-0.2
Falling speed (no load / full load) m/s 0-0.2/0-0.28
Driving speed (no load / full load) m / h 5000/5500
Maximum climbing angle (no load / full load) ° 5.0/8.0

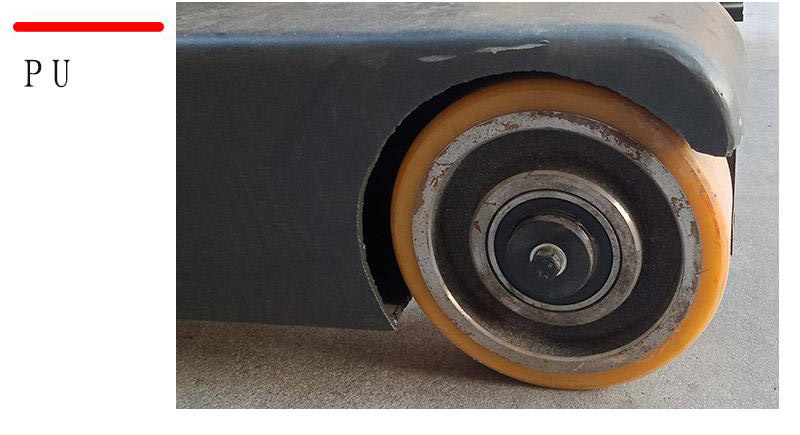

Tire   Polyurethane
Driving style   Standing steer  type
Turn   Mechanical steering
brake   Electromagnetic brake
battery V-AH 24/210-240
Lift motor KW 3.3KW
Travel motor KW 1.5KW
Hydraulic oil   46#
Self weight KG ≈1850
Driver's ear noise dB(A) <70

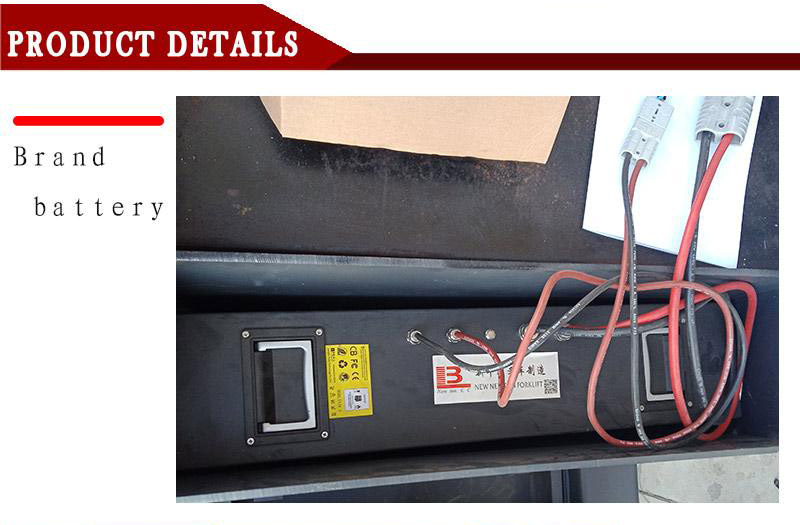

straddle pallet jack 5

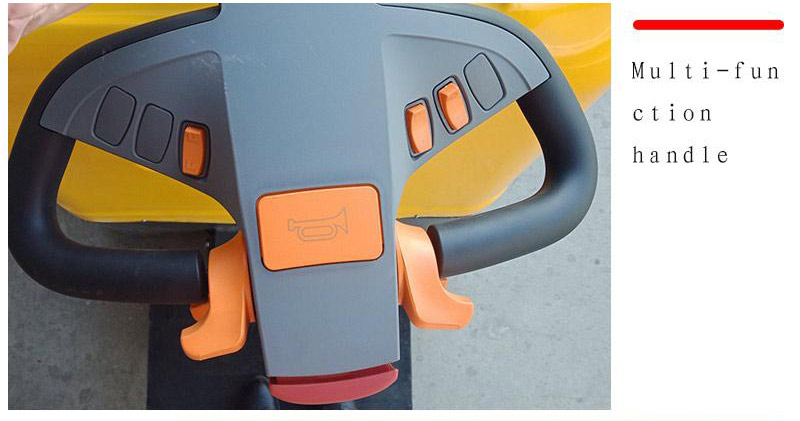

warehouse stacker forklift

warehouse stacker forklift 1

warehouse stacker forklift 2

warehouse stacker forklift 3

warehouse stacker forklift 4

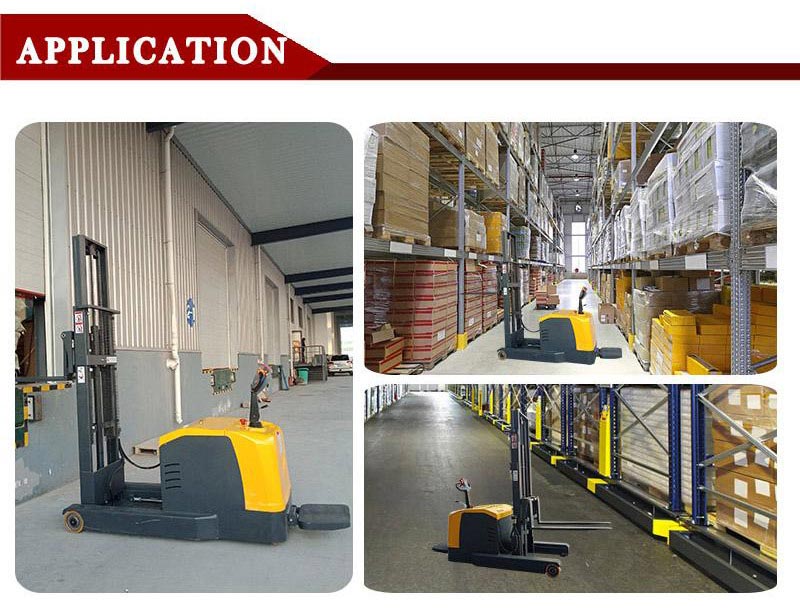

The forward-moving stacker pallet truck forklift has a compact structure, flexible operation, and a gantry forward design. The overall length of the forward-moving stacker straddle pallet jack is shorter than that of the counterweight stacker, and the turning radius is small. The forward-moving stacker warehouse stacker forklift has a wide range of applications and is suitable for loading and unloading cargo in narrow passageways.

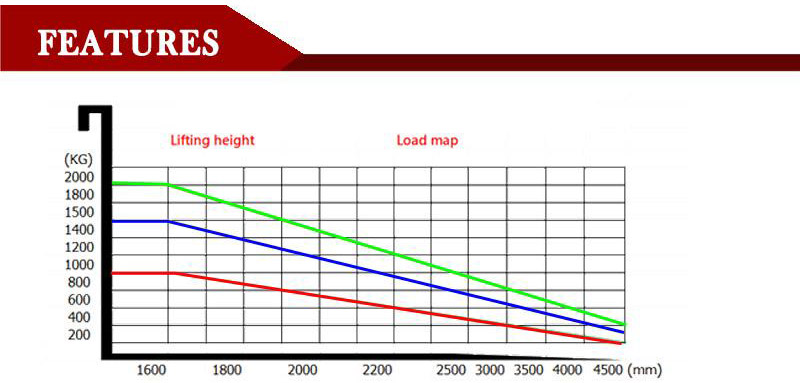

warehouse stacker forklift 5

warehouse stacker forklift 6

warehouse stacker forklift 7

pallet truck forklift

The forward-moving stacker pallet truck forklift has a compact structure, flexible operation, and a gantry forward design. The overall length of the forward-moving stacker straddle pallet jack is shorter than that of the counterweight stacker, and the turning radius is small. The forward-moving stacker warehouse stacker forklift has a wide range of applications and is suitable for loading and unloading cargo in narrow passageways.

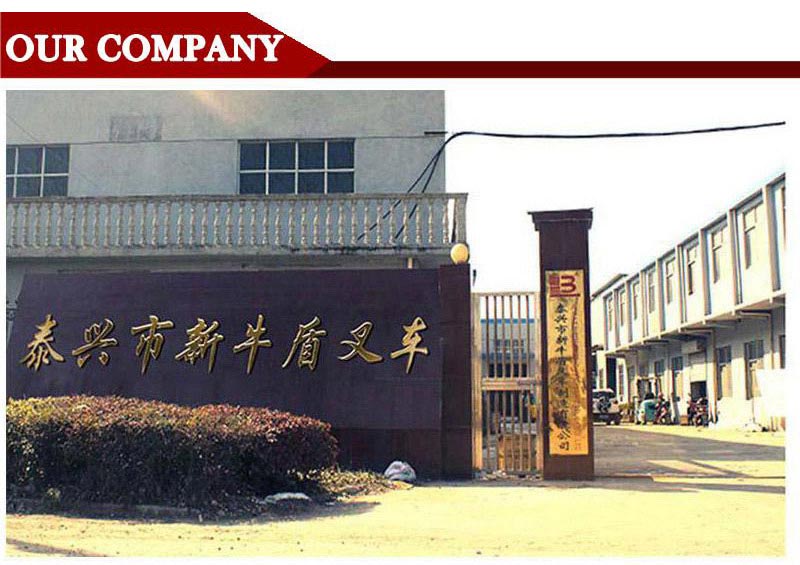

pallet truck forklift 1

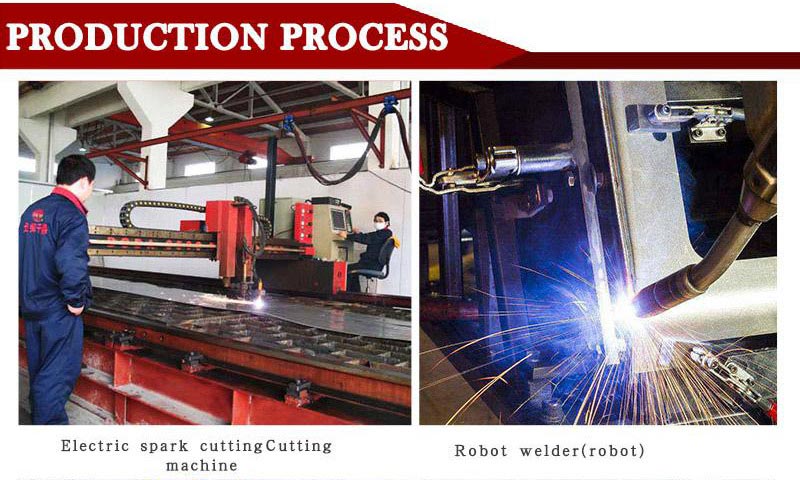

NEW NEWTON(TAIZHOU) FORKLIFT TRUCK CO.,Ltd. is a subsidiary of Tianjin Rixu Trading Co., Ltd. It is a high-tech enterprise. The brand NEW NEWTON is a newly launched series of warehousing and logistics equipment brand in recent years. The factory covers an area of more than 4,000 square meters and has a production workshop of more than 2,000 square meters. The company is engaged in the sales of forklift trucks for nearly 20 years and has been working on forklift production for nearly 10 years. In the past ten years, we have continuously developed and expanded our products. Nowadays, the mature new Newton has made customers more worry-free and save money. The company has high-tech technicians and has 100T hydraulic presses, large EDM cutting and machining centers, welding robot, large surface treatment machines, drying lines and fully automatic spray lines imported from the UK; the company’s equipment production capacity reaches the production level of 1 million sets of series of trucks and stackers.

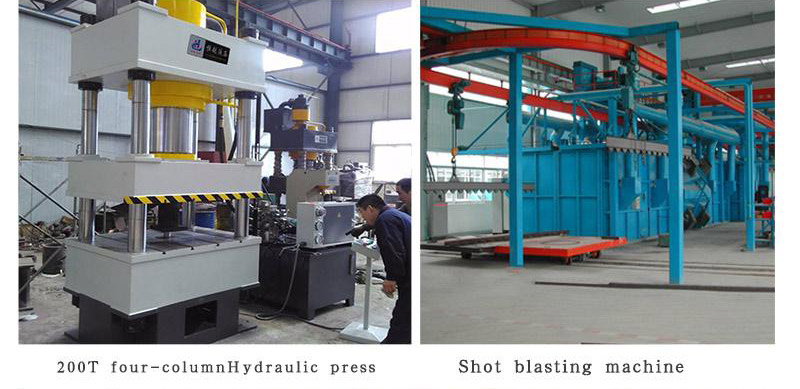

pallet truck forklift 2

pallet truck forklift 3

pallet truck forklift 4

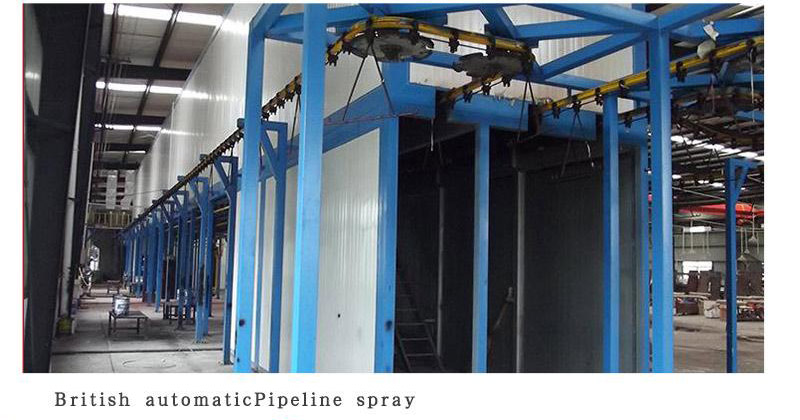

pallet truck forklift 5

pallet truck forklift 6

pallet truck forklift 7

straddle pallet jack

straddle pallet jack 1

straddle pallet jack 2

1. How long is the warranty time?

    10000 working hours or 12 month, whichever comes first.

2. How can I get the after-sales service?

    The global service network is still under construction, but if you have any questions or need

    professional support, you can contact us. We will try our best to solve your problem within 24

    hours and arrange for the delivery of spare parts within 48 hours.

 3. How about your warranty item?

    We can support you with original spare parts, and email or telephone assistance in the following

    days. If necessary, our experience engineer can go abroad to your place for technical support.

  4. How about your product quality?

    All our products are form the original manufactures and the quality is 100% guaranteed.

    5. Can I be your agent in my country?

    It’s OK if the order quantity is appropriate. We looks forward to long-term cooperation.

    6. What information should I let you know if I want to get a quotation?

    Lifting capacity Size Load Features Would be better if you have drawings of your piant.

   7. What about the lead time for mass production?

    Hoestly, it depends on the order quantity and specification and the season you place the order. Within 30 days will be ok. Generally speaking, we suggest you start inquiry two months before the date you would like to get the products at your country.
