Full electric multi directional forklift seat electric hydraulic handling truck
atlet forklift
power forklift 1
power forklift

Full electric multi directional forklift seat electric hydraulic handling truck

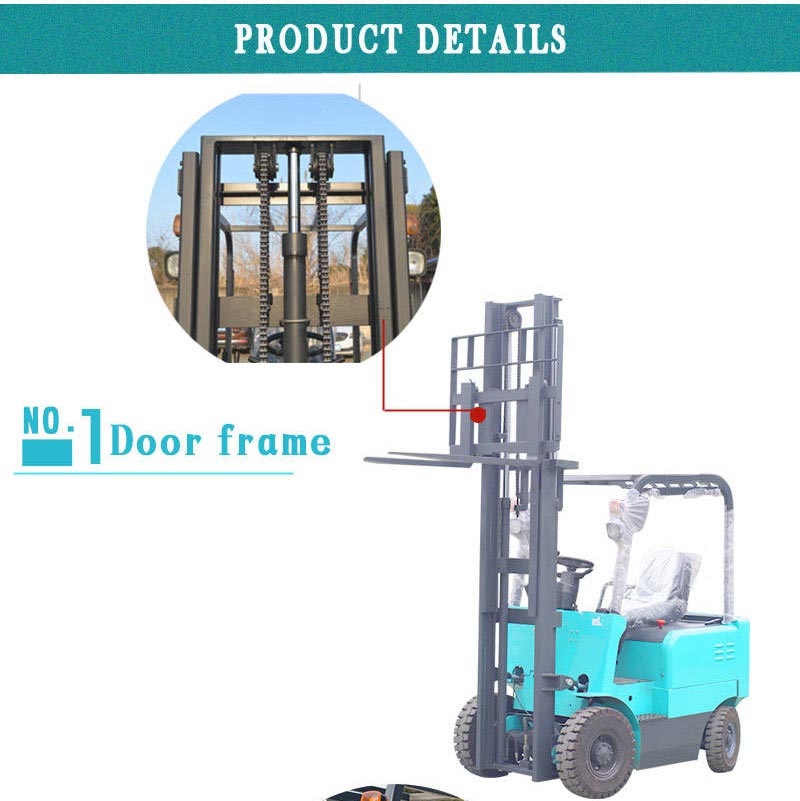

The multi directional forklift uses a high-quality chain to make the cargo move more smoothly and reduce noise. The atlet forklift adopts high-strength forks, which are not only beautiful, but also have stronger bearing capacity.

Product Specification:
  • Price : -
  • Min. Order : 1

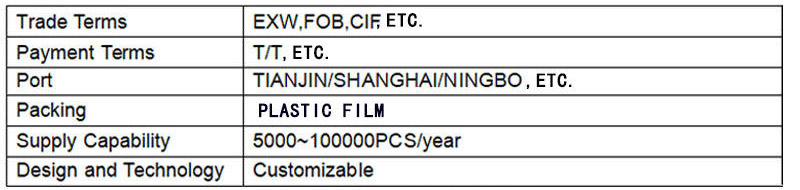

  • PaymentTerms : T/T、L/C、Western Union、Alipay
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
iconMay you like
  1. Video
  2. Description
  3. Reviews
  4. Download

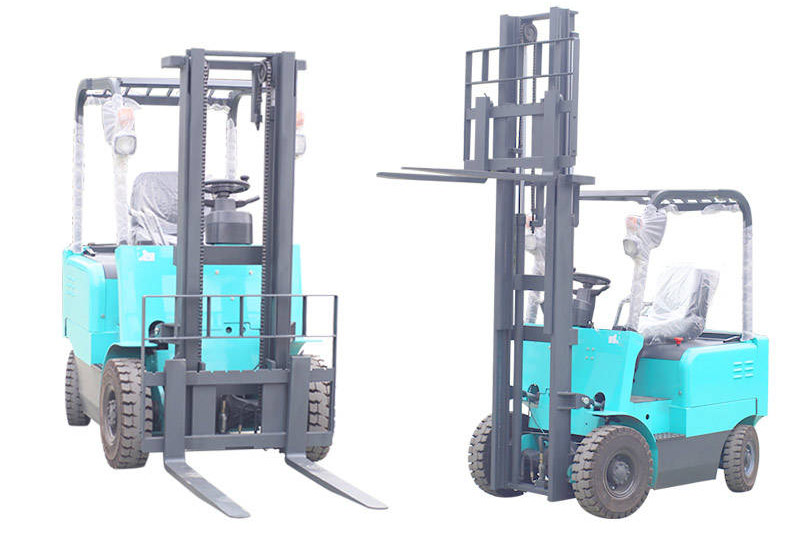

2 ton Full electric multi directional forklift seat electric hydraulic handling truck

atlet forklift 5

model LBCPD-20-30-SD
Load (kg) 2000
Form of steel H
Lifting height (mm) 3000
Frame static height (mm) 4100
After lifting the total height (mm) 1150
Free height (mm) 160
Load center distance (mm) 500
Before and after the tilt angle 6/12
Turning radius (mm) 2080
Minimum channel requirement (mm) 4090
Wheelbase (mm) 1500
Front suspension (mm) 465
Track  (front / rear)

960/950

Overhead guard height (mm) 2150
Total length (mm) 2375
Total body width (mm) 1100

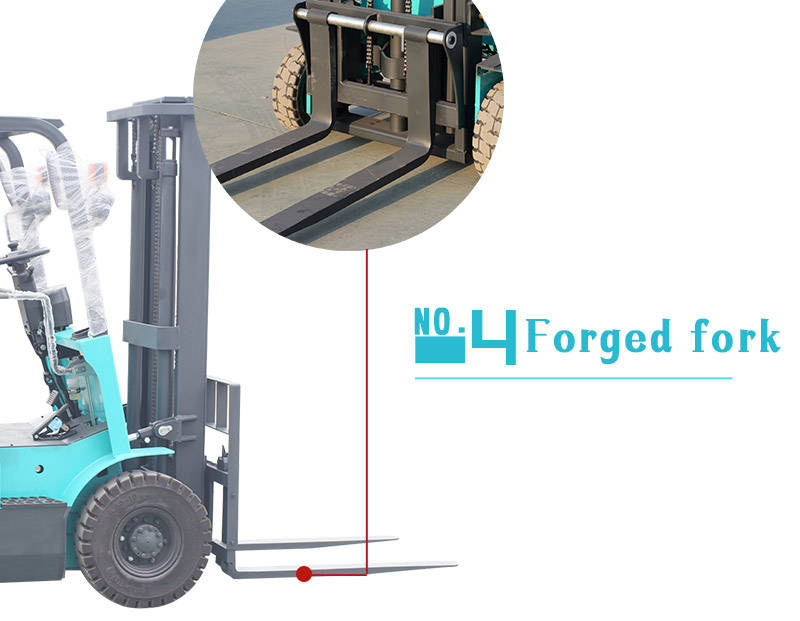

Fork size (forged) mm 1070*100*35
Fork adjustable range (mm)

260-1100(2.0T)

Chassis height from the ground (mm) 130
Lifting speed (full load / no load) (mm / s) 384/220
Driving speed (full load / no load) (km / h) 12/13
Maximum gradient (full load / no load) (°) 15/15
Tire (front) 6.5-10-10PR/28*9-15-12PR
Tire (rear) 5.0-8-8PR/18*9-8*14PR
Tire Solid rubber tires
Driving method Sitting and driving
Braking method Electromagnetic brake

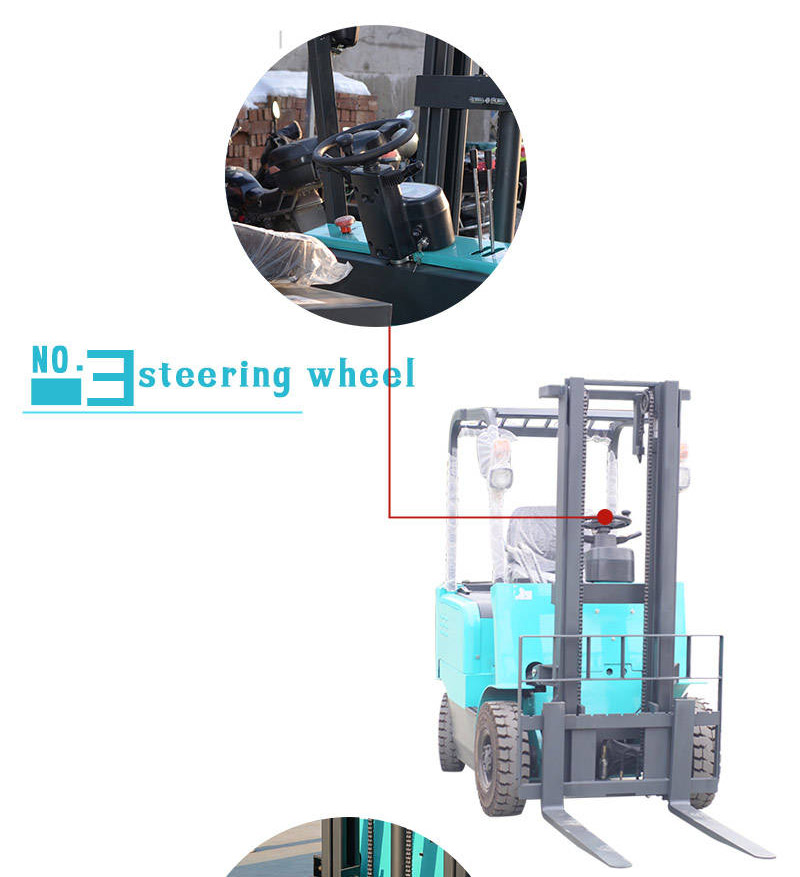

Turn Hydraulic steering
Battery (V/AH) 24/210-500
Lift motor 10KW
Walking motor 10KW
Hydraulic oil 46#
Total Weight(KG) ≈4800
Noise level dB (A) <70
Lighting device Explosion-proof LED bulbs

atlet forklift 6

atlet forklift 7

power forklift

power forklift 1

The multi directional forklift uses a high-quality chain to make the cargo move more smoothly and reduce noise. The atlet forklift adopts high-strength forks, which are not only beautiful, but also have stronger bearing capacity. The power forklift adopts an enlarged thick rubber wheel, which greatly enhances the ability of the power forklift to adapt to the road and climb.

power forklift 2

power forklift 3

power forklift 4

power forklift 5

power forklift 6

The multi directional forklift uses a high-quality chain to make the cargo move more smoothly and reduce noise. The atlet forklift adopts high-strength forks, which are not only beautiful, but also have stronger bearing capacity. The power forklift adopts an enlarged thick rubber wheel, which greatly enhances the ability of the power forklift to adapt to the road and climb.

multi directional forklift

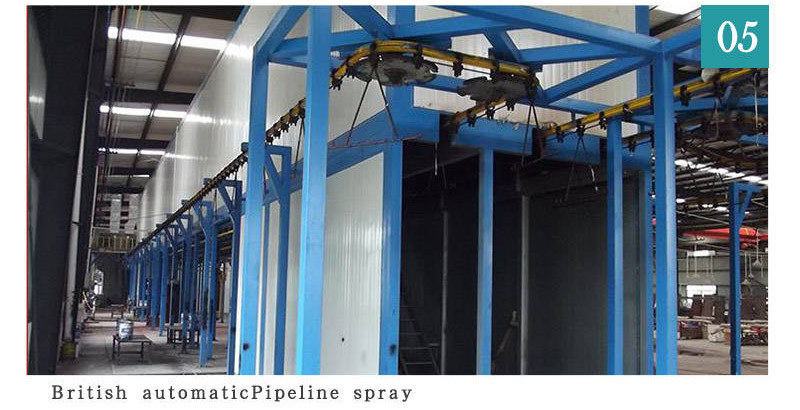

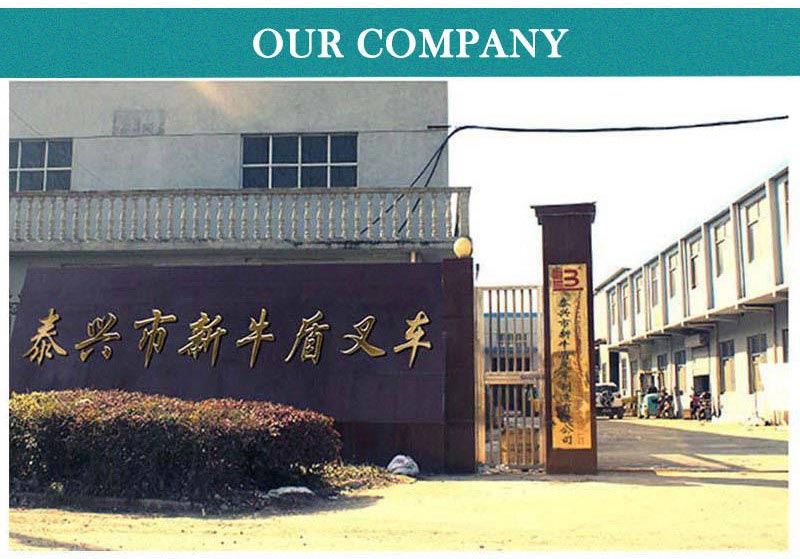

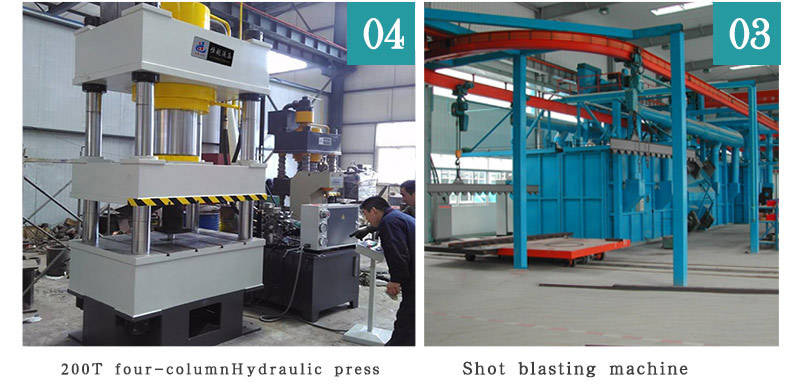

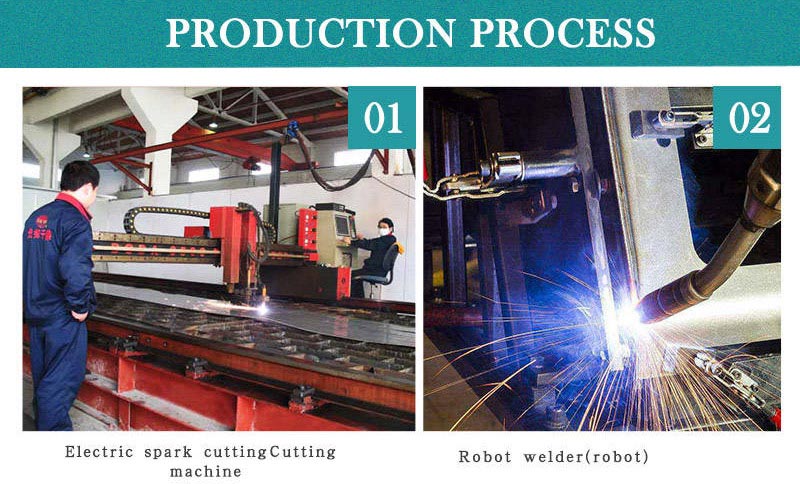

NEW NEWTON(TAIZHOU)FORKLIFT TRUCK CO. TLD is located in Taixing City, Jiangsu Province. It covers an area of about 4,000 square meters and has about 20 high-tech talents. It has more than 15 years of experience in storage equipment and has large-scale automatic assembly line equipment. It is specialized in electric storage equipment and forklifts. A global trading company that designs, manufactures and services, specializing in electric forklifts and vans. Strategic cooperation with nearly 15 large-scale commercial and logistics companies at home and abroad. The company has passed the ISO quality system international standard certification; obtained the "GS" and "CE" certification and the "TX" certification for various products; it has a number of patents granted by the State Intellectual Property Office.  It can produce 1 million products per year and has served more than 1000 customers worldwide. It can provide customers with “one-stop” services including design, manufacturing, testing and assembly. After 5475 days, our products have been praised as “0” by customers. "Safety accident", "0 emission energy saving", with "9000H quality assurance" and "7 * 24H after-sales service" high-quality products. The company regards “letting manpower to be a history” as our driving force. On this basis, we are constantly pursuing innovation and continuous breakthrough to provide more commercial value and environmental protection power storage equipment for the global market. NEW NEWTON has been widely received and favored by domestic and foreign customers for its beautiful appearance, high quality and comprehensive service, safe and reliable, and cost-effective products. The products have been exported to many countries and regions around the world. The international, professional and green standards have become the most respected forklift brand in the world. Our electric forklifts use zero discharge and zero pollution. The first time we truly solve the environmental problems of the forklift industry, it is especially suitable for the high environmental protection requirements of food, medicine, supermarket, cold chain, airport and other industries.

multi directional forklift 1

multi directional forklift 2

multi directional forklift 3

multi directional forklift 4

multi directional forklift 5

multi directional forklift 6

atlet forklift

atlet forklift 1

atlet forklift 2

atlet forklift 3



1. How long is the warranty time?

    10000 working hours or 12 month, whichever comes first.

    2. How can I get the after-sales service?

    The global service network is still under construction, but if you have any questions or need

    professional support, you can contact us. We will try our best to solve your problem within 24

    hours and arrange for the delivery of spare parts within 48 hours.

    3. How about your warranty item?

    We can support you with original spare parts, and email or telephone assistance in the following

    days. If necessary, our experience engineer can go abroad to your place for technical support.

   4. How about your product quality?

    All our products are form the original manufactures and the quality is 100% guaranteed.

    5. Can I be your agent in my country?

    It’s OK if the order quantity is appropriate. We looks forward to long-term cooperation.

    6. What information should I let you know if I want to get a quotation?

    Lifting capacity

    Size

    Load

    Features

    Would be better if you have drawings of your piant.

   7. What about the lead time for mass production?

    Hoestly, it depends on the order quantity and specification and the season you place the order.  Within 30 days will be ok. Generally speaking, we suggest you start inquiry two months before the date.
