Special price is applicable to the walking electric truck with narrow passage

The special price is applicable to the walking all-electric global pallet jack with narrow passage. This walking all-electric warehouse pallet trucks is completely liberating manpower, powerful and flexible. This walking electric mechanical pallet truck i

Product Specification:
  • Price : -
  • Min. Order : 1

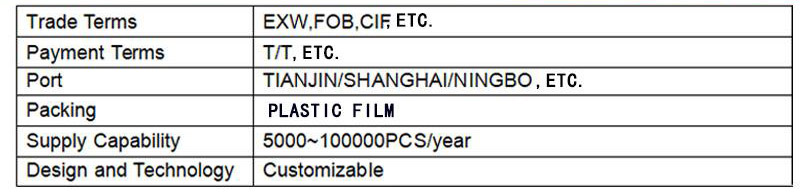

  • PaymentTerms : T/T、L/C、Western Union、Alipay
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
iconMay you like
  1. Video
  2. Description
  3. Reviews
  4. Download

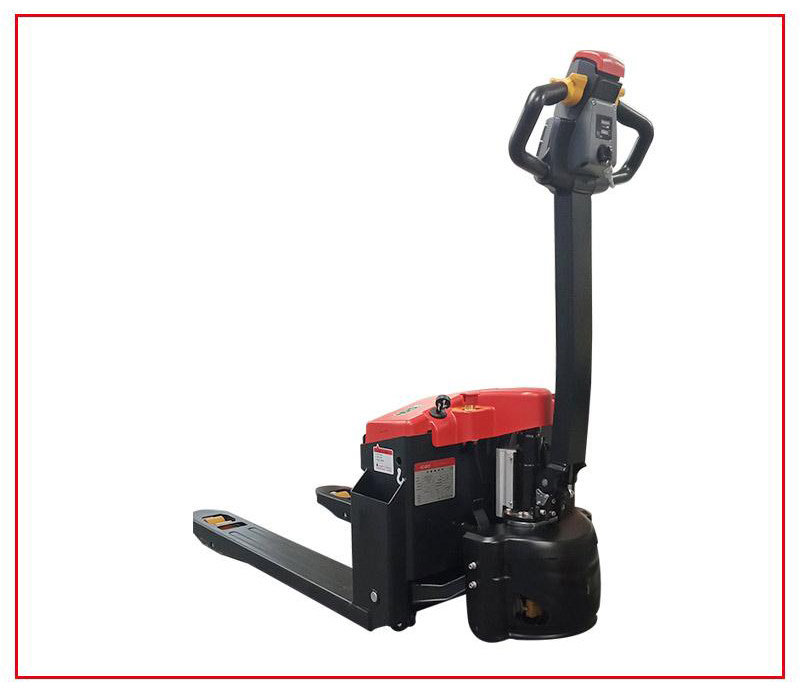

Special price is applicable to the walking electric truck with narrow passage

warehouse pallet trucks 5

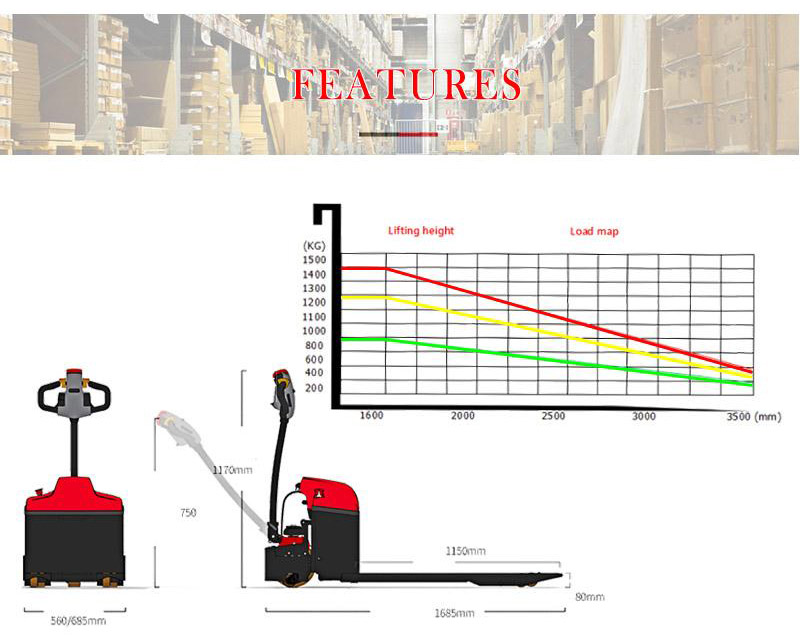

model

LBCBD-Ⅰ-15-560/685-WA

Load (kg)                                            pallet jack 1500
Dynamic form                         electric pallet jack    electric
Operation type                                   pallet jack  walk
Lifting height (mm)                            pallet truck 115
Wheelbase (mm)                   electric pallet jack       1268/1231
Carrying length ( mm)                       pallet truck 889/946
Fork down the surface from the ground (mm) 80-85
Load center distance (mm)        electric pallet jack  600
Fork minimum clearance from the ground(mm) 35
Turning radius (mm)                         pallet jack  1485
Minimum channel requirement (mm) 1739
Overall length (mm)                           pallet truck  1632
Total body width (mm)                   pallet jack 550/685
Fork width (mm)                      electric pallet jack 550/685
Fork size ( mm)                                    pallet jack 50*150*1150

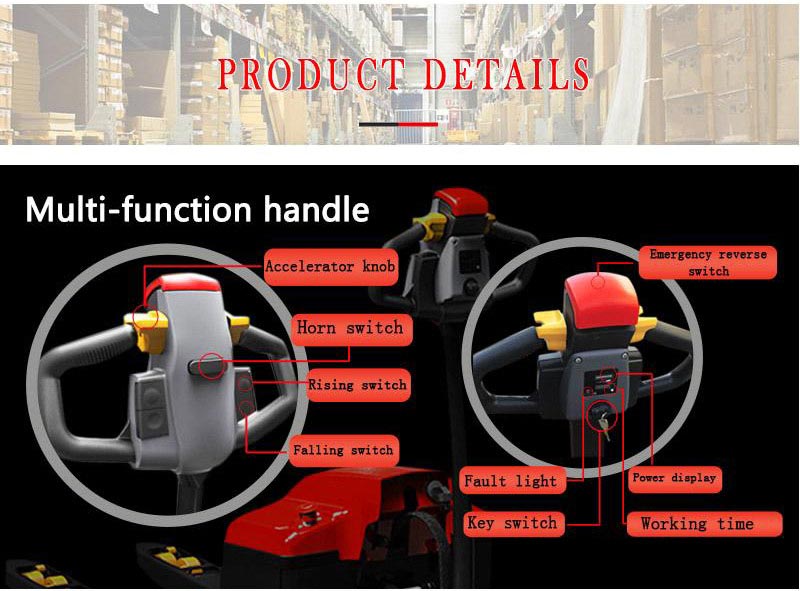

Operating handle minimum / maximum height (mm)                                              pallet truck 750/1170
Lifting speed (full load / no load) (mm/ s) 26/31
Driving speed (full load / no load) (km / h) 5.0/4.5
Falling speed (full load / no load) (mm/ s) 29/21
Maximum gradient (full load / no load) (°) 2/6

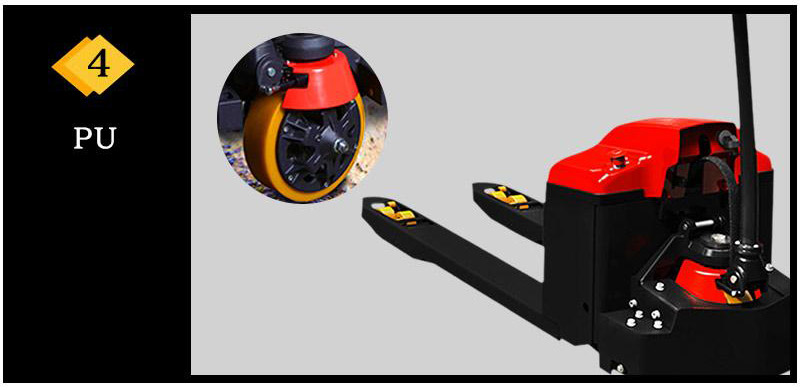

Tire                                                      pallet truck Polyurethane
Number of drive wheels,balance wheels / load wheels (*=drive wheel) 1*/4(1*/2)
Drive wheel / load wheel size (mm) Φ210*70/80*60 (74*88)
Braking method                                       pallet jack Electromagnetic brake

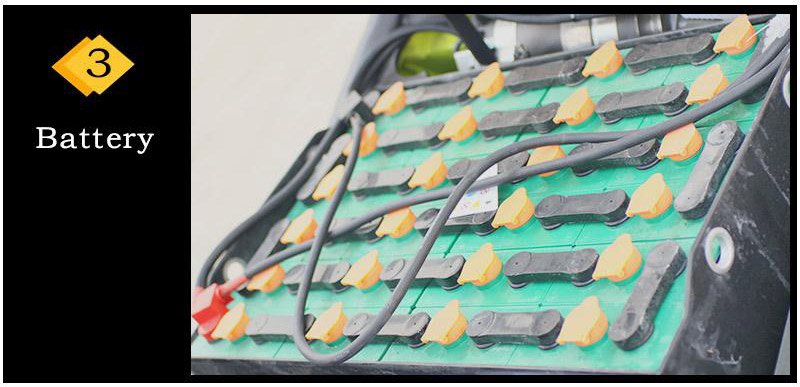

Battery (V/AH)                                      pallet truck DC24V/85AH
Maximum battery size (mm) 360*170*280
Battery weight (kg)                  electric pallet jack 25.5*2
Lift the motor                                     pallet jack 0.84KW
Walking motor                                   pallet truck   0.65KW
Steering type                         electric pallet jack mechanical
Hydraulic oil                             pallet truck 46#
Total Weight(KG)                      pallet jack  ≈205
Noise level dB (A)                 electric pallet jack <74

warehouse pallet trucks 6

warehouse pallet trucks 7

mechanical pallet truck

mechanical pallet truck 1

mechanical pallet truck 2

mechanical pallet truck 3

The special price is applicable to the walking all-electric global pallet jack with narrow passage. This walking all-electric warehouse pallet trucks is completely liberating manpower, powerful and flexible. This walking electric mechanical pallet truck is more convenient and quicker to maintain.

mechanical pallet truck 4

mechanical pallet truck 5

mechanical pallet truck 6

global pallet jack

global pallet jack 1

The special price is applicable to the walking all-electric global pallet jack with narrow passage. This walking all-electric warehouse pallet trucks is completely liberating manpower, powerful and flexible. This walking electric mechanical pallet truck is more convenient and quicker to maintain.

global pallet jack 2

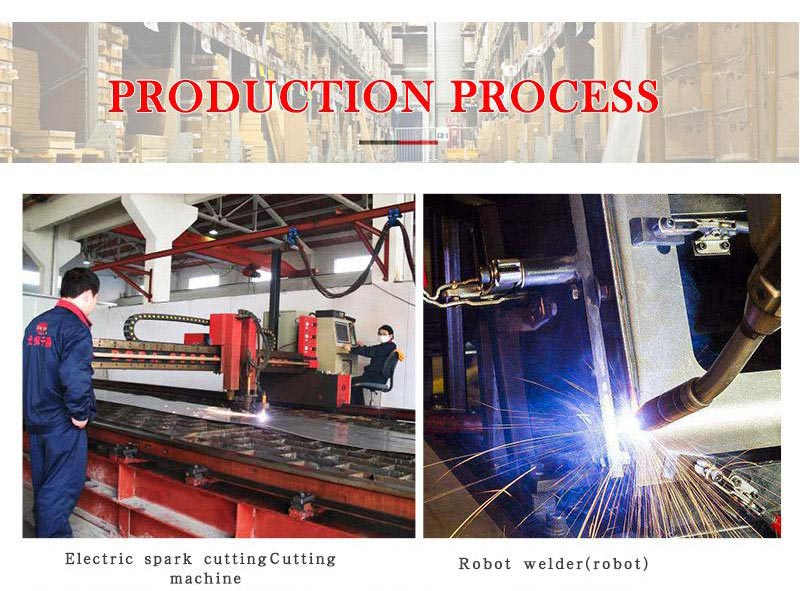

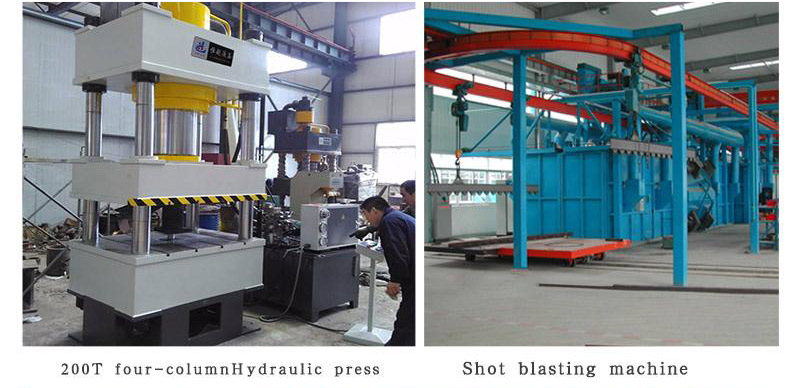

NEW NEWTON(TAIZHOU)FORKLIFT TRUCK CO. TLD is located in Taixing City, Jiangsu Province. It covers an area of about 4,000 square meters and has about 20 high-tech talents. It has more than 15 years of experience in storage equipment and has large-scale automatic assembly line equipment. It is specialized in electric storage equipment and forklifts. A global trading company that designs, manufactures and services, specializing in electric forklifts and vans. Strategic cooperation with nearly 15 large-scale commercial and logistics companies at home and abroad. The company has passed the ISO quality system international standard certification; obtained the "GS" and "CE" certification and the "TX" certification for various products; it has a number of patents granted by the State Intellectual Property Office.  It can produce 1 million products per year and has served more than 1000 customers worldwide. It can provide customers with “one-stop” services including design, manufacturing, testing and assembly. After 5475 days, our products have been praised as “0” by customers. "Safety accident", "0 emission energy saving", with "9000H quality assurance" and "7 * 24H after-sales service" high-quality products. The company regards “letting manpower to be a history” as our driving force. On this basis, we are constantly pursuing innovation and continuous breakthrough to provide more commercial value and environmental protection power storage equipment for the global market. NEW NEWTON has been widely received and favored by domestic and foreign customers for its beautiful appearance, high quality and comprehensive service, safe and reliable, and cost-effective products. The products have been exported to many countries and regions around the world. The international, professional and green standards have become the most respected forklift brand in the world. Our electric forklifts use zero discharge and zero pollution. The first time we truly solve the environmental problems of the forklift industry, it is especially suitable for the high environmental protection requirements of food, medicine, supermarket, cold chain, airport and other industries.

global pallet jack 3

global pallet jack 4

global pallet jack 5

global pallet jack 6

global pallet jack 7

warehouse pallet trucks

warehouse pallet trucks 1

warehouse pallet trucks 2

warehouse pallet trucks 3

 1. How about your quality control before shipment?

  All products will have been strictly quality checked and tested in house before packing. All

  products will be well packed before shipping.

  2. How to place an order?

  Please email us or Trademanager or call us to tell us the detailed requirements of the products

  you need (load capacity, height increase, etc.) and we will send you our offer within 24 hours.

  If you have no problem, please send us your purchase order, or you can ask us to send you a

  formal invoice for the order.

  3. Can you send the machine to my factory in other city to load the container?

  Yes, please tell us the detail address, we can arrange to send your factory in time.

  4. Are the forklift trucks covered by a warranty?

  Yes. All our machines carry a full 1 year major parts warranty.

  5. Can I get discounts?

  Yes, for big order, old customer and frequent customers, we give reasonable discounts.

  6. If I want to quote, what information should I provide?

  Provide the relevant functions you need to use, as well as the load, lift height, and electric

  voltage.

  7. How long is the warranty?

  Generally the warranty is one year, we can provide you free spar parts if broken within

  warranty period.
