Pallet Fork Polyurethane wheel Pallet Truck

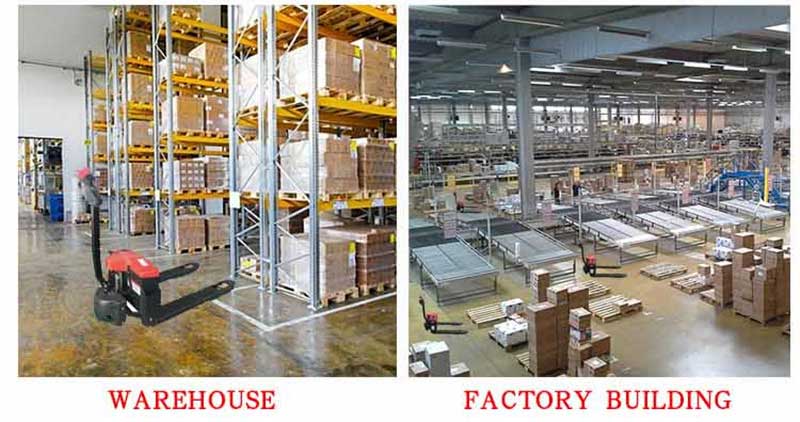

pallet jack the advantages of a small body, pallet truck suitable for low-intensity loads in warehouses, electric pallet jack reducing operating costs and improving work efficiency.

Product Specification:
  • Price : -
  • Min. Order : 1

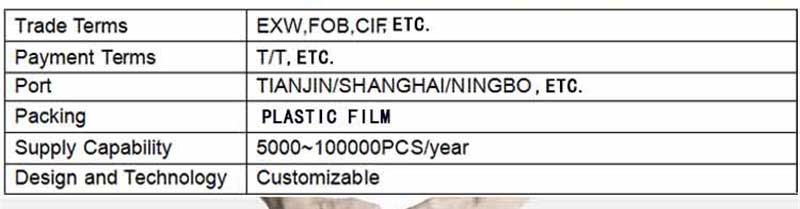

  • PaymentTerms : T/T
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
iconMay you like
  1. Video
  2. Description
  3. Reviews
  4. Download

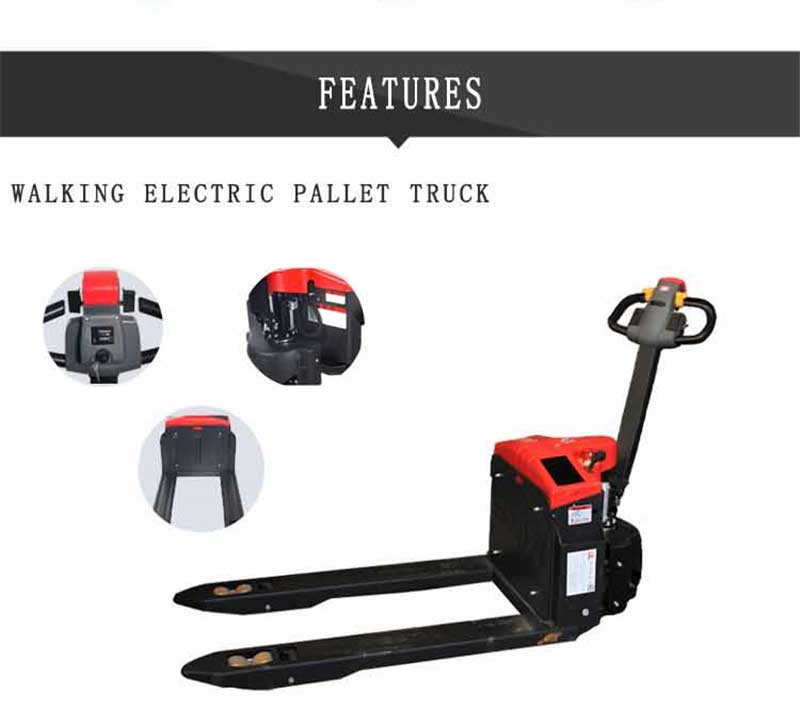

Pallet Fork Polyurethane wheel Pallet Truck

model

LBCBD-Ⅰ-15-560/685-WA

Load (kg)                                            pallet jack 1500
Dynamic form                         electric pallet jack    electric
Operation type                                   pallet jack  walk
Lifting height (mm)                            pallet truck 115
Wheelbase (mm)                   electric pallet jack       1268/1231
Carrying length ( mm)                       pallet truck 889/946
Fork down the surface from the ground (mm) 80-85
Load center distance (mm)        electric pallet jack  600
Fork minimum clearance from the ground(mm) 35
Turning radius (mm)                         pallet jack  1485
Minimum channel requirement (mm) 1739
Overall length (mm)                           pallet truck  1632
Total body width (mm)                   pallet jack 550/685
Fork width (mm)                      electric pallet jack 550/685
Fork size ( mm)                                    pallet jack 50*150*1150

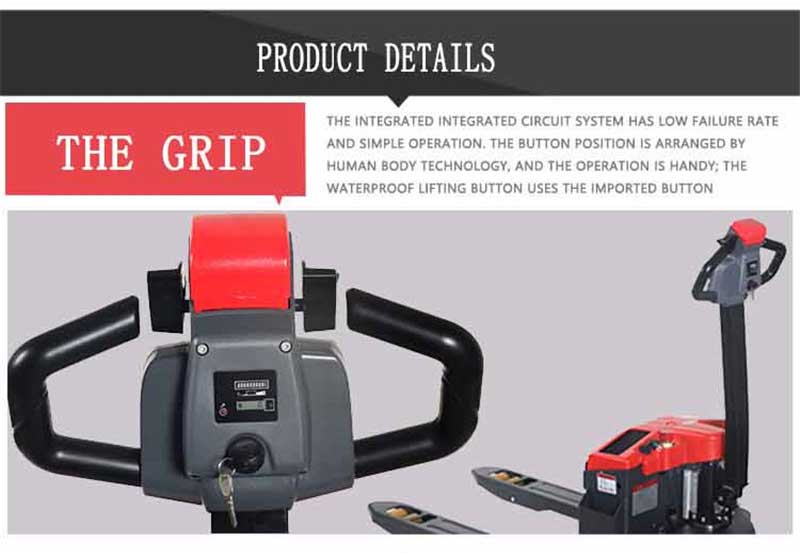

Operating handle minimum / maximum height (mm)                                              pallet truck 750/1170
Lifting speed (full load / no load) (mm/ s) 26/31
Driving speed (full load / no load) (km / h) 5.0/4.5
Falling speed (full load / no load) (mm/ s) 29/21
Maximum gradient (full load / no load) (°) 2/6

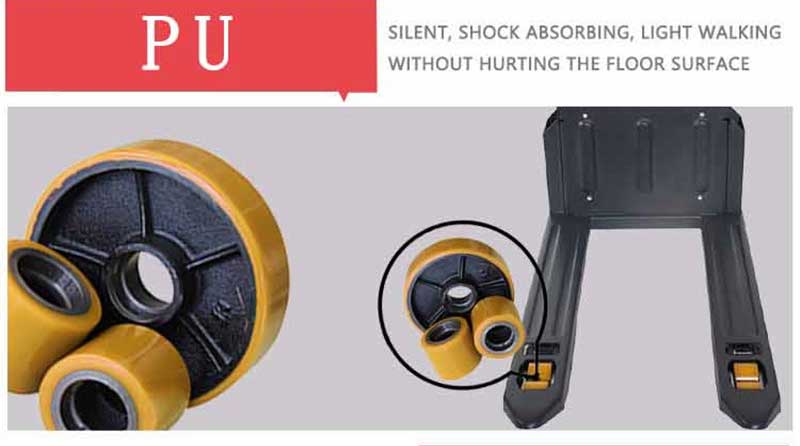

Tire                                                      pallet truck Polyurethane
Number of drive wheels,balance wheels / load wheels (*=drive wheel) 1*/4(1*/2)
Drive wheel / load wheel size (mm) Φ210*70/80*60 (74*88)
Braking method                                       pallet jack Electromagnetic brake
Battery (V/AH)                                      pallet truck DC24V/85AH
Maximum battery size (mm) 360*170*280
Battery weight (kg)                  electric pallet jack 25.5*2
Lift the motor                                     pallet jack 0.84KW

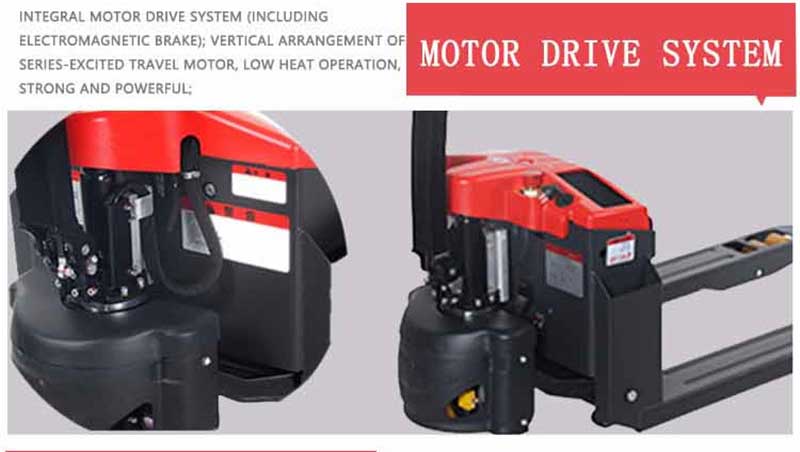

Walking motor                                   pallet truck   0.65KW
Steering type                         electric pallet jack mechanical
Hydraulic oil                             pallet truck 46#
Total Weight(KG)                      pallet jack  ≈205
Noise level dB (A)                 electric pallet jack <74

pallet jack , pallet truck,  electric pallet jack

pallet jack , pallet truck,  electric pallet jack

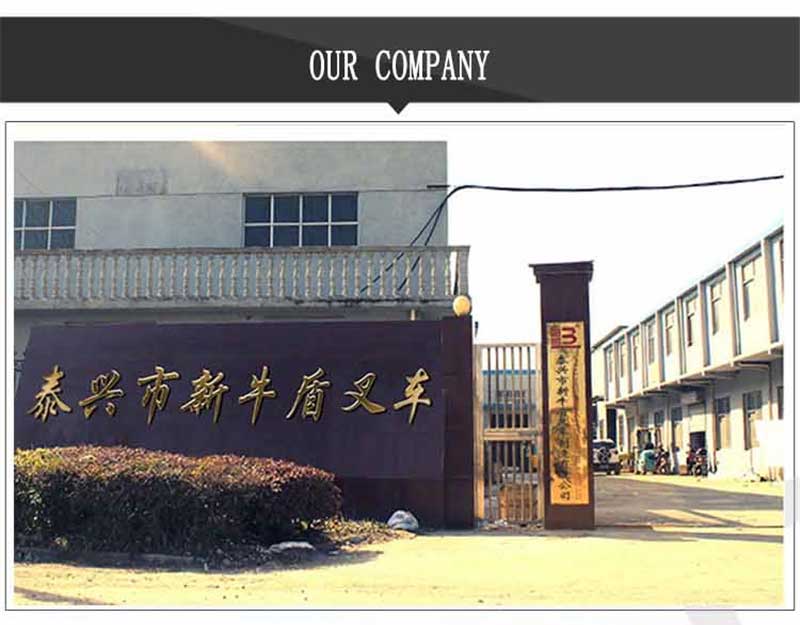

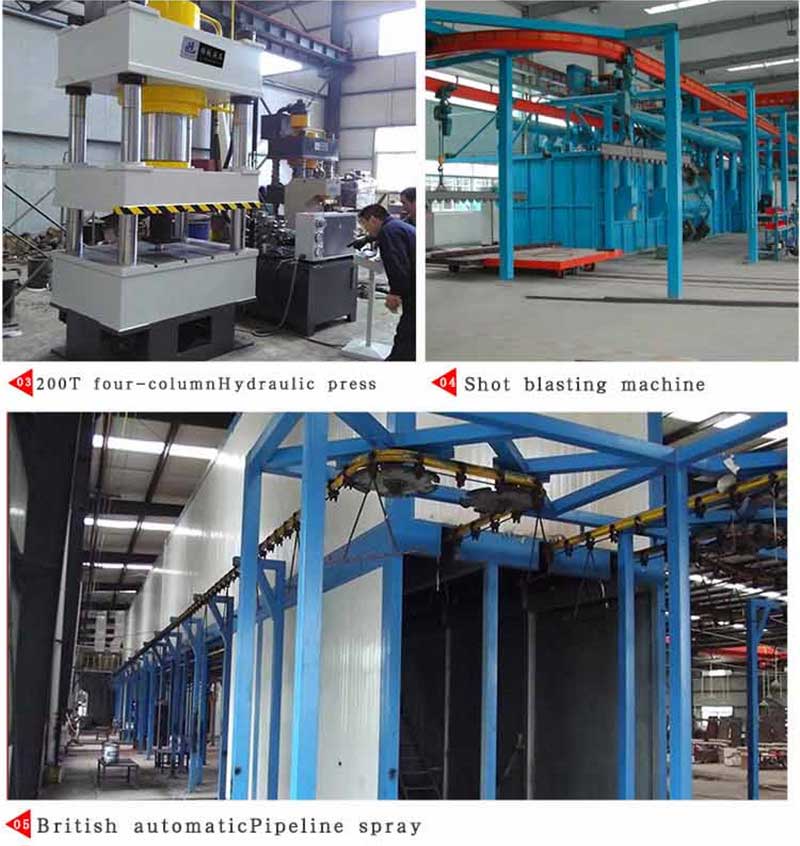

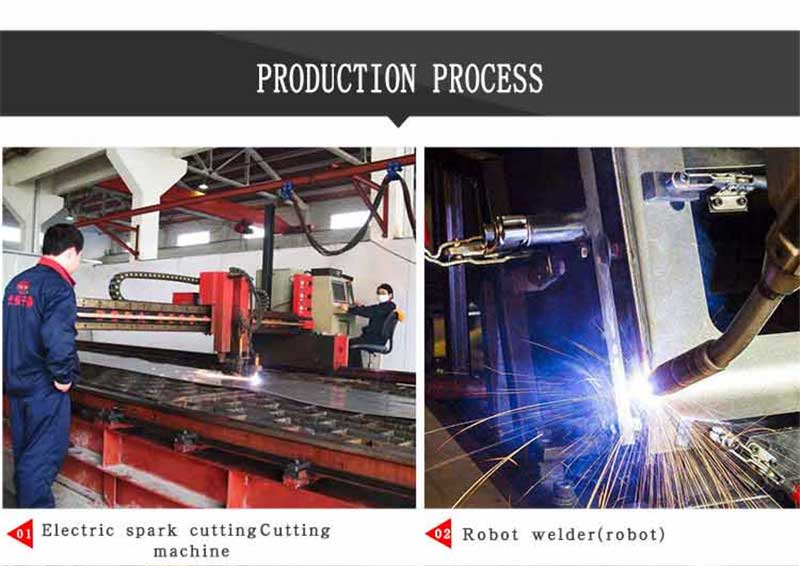

NEW NEWTON(TAIZHOU) FORKLIFT TRUCK CO.,Ltd. is a subsidiary of Tianjin Rixu Trading Co., Ltd. It is a high-tech enterprise. The brand NEW NEWTON is a newly launched series of warehousing and logistics equipment brand in recent years. The factory covers an area of more than 4,000 square meters and has a production workshop of more than 2,000 square meters. The company is engaged in the sales of forklift trucks for nearly 20 years and has been working on forklift production for nearly 10 years. In the past ten years, we have continuously developed and expanded our products. Nowadays, the mature new Newton has made customers more worry-free and save money. The company has high-tech technicians and has 100T hydraulic presses, large EDM cutting and machining centers, welding robot, large surface treatment machines, drying lines and fully automatic spray lines imported from the UK; the company’s equipment production capacity reaches the production level of 1 million sets of series of trucks and stackers.

                                          pallet jack , pallet truck,  electric pallet jack

 1. How about your quality control before shipment?

  All products will have been strictly quality checked and tested in house before packing. All

  products will be well packed before shipping.

  2. How to place an order?                      pallet jack , pallet truck,  electric pallet jack

  Please email us or Trademanager or call us to tell us the detailed requirements of the products

  you need (load capacity, height increase, etc.) and we will send you our offer within 24 hours.

  If you have no problem, please send us your purchase order, or you can ask us to send you a

  formal invoice for the order.                         pallet jack , pallet truck,  electric pallet jack

  3. Can you send the machine to my factory in other city to load the container?

  Yes, please tell us the detail address, we can arrange to send your factory in time.

  4. Are the forklift trucks covered by a warranty?

  Yes. All our machines carry a full 1 year major parts warranty.

  5. Can I get discounts?                        pallet jack , pallet truck,  electric pallet jack

  Yes, for big order, old customer and frequent customers, we give reasonable discounts.

  6. If I want to quote, what information should I provide?

  Provide the relevant functions you need to use, as well as the load, lift height, and electric

  voltage.                                       pallet jack , pallet truck,  electric pallet jack

  7. How long is the warranty?                    pallet jack , pallet truck,  electric pallet jack

  Generally the warranty is one year, we can provide you free spar parts if broken within

  warranty period.                              pallet jack , pallet truck,  electric pallet jack
