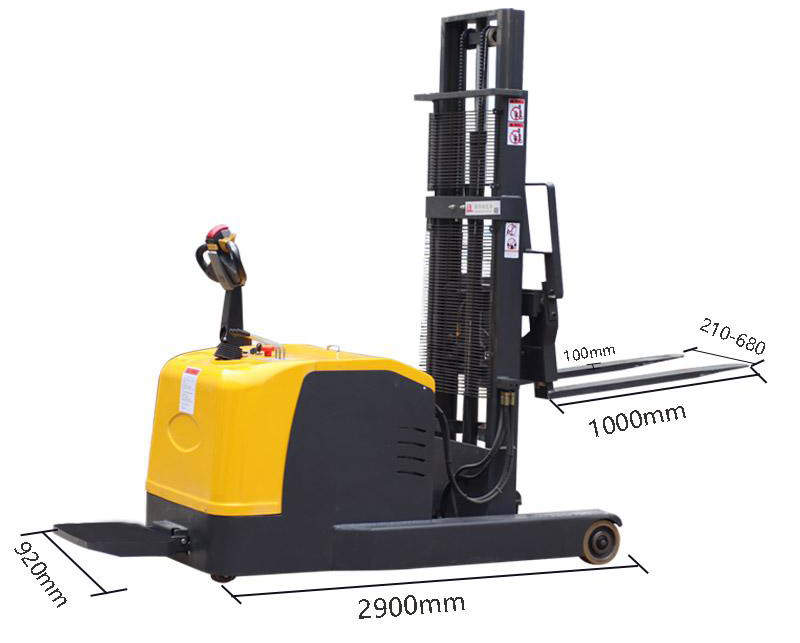

Electric reach truck with no fork legs that can be tilted forward and backward
electric stacker truck (1)
electric stacker truck (2)
electric stacker truck (3)
electric stacker truck (4)

Electric reach truck with no fork legs that can be tilted forward and backward

The gantry of the electric reach truck can be moved forward and backward to facilitate forklifting and has a wide range of applications. The counterbalance pallet stacker has no forks and the goods on the fork shelves are unobstructed.

Product Specification:
  • Price : -
  • Min. Order : 1
  • PaymentTerms : T/T、L/C、Western Union、Alipay
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
  1. Video
  2. Description
  3. Reviews
  4. Download

Electric reach truck with no fork legs that can be tilted forward and backward

counterbalance pallet stacker 4

New Newton (Taizhou) forklift truck co.,ltd5. The factory covers an area of more than 5,000 square meters and has a production workshop of more than 3,600 square meters. The factory has a modern intelligent production line and a complete technical system. It has a large hydraulic press machining center, large-scale EDM cutting, electric welding robot, large surface treatment machine, drying line and fully automatic injection molding line imported from the UK. The production capacity of the plant has reached the production level of 1 million units per year.

counterbalance pallet stacker 5

counterbalance pallet stacker 6

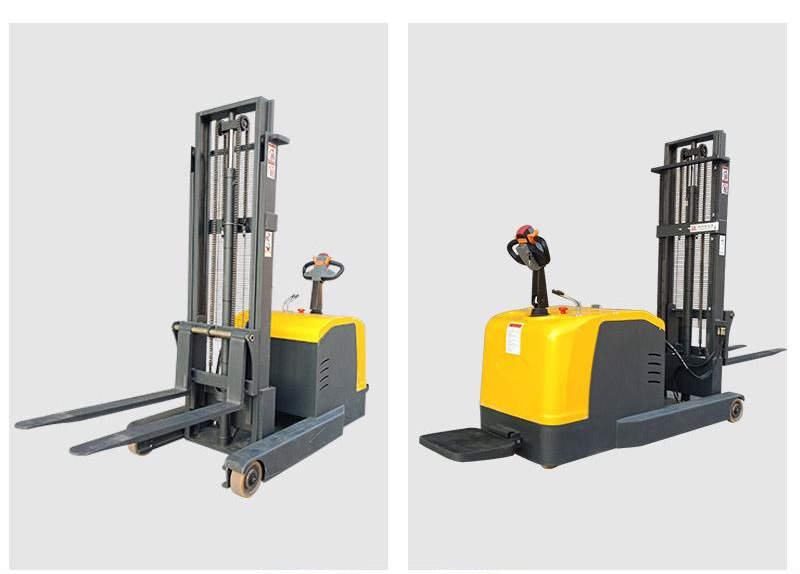

The gantry of the electric reach truck can be moved forward and backward to facilitate forklifting and has a wide range of applications. The counterbalance pallet stacker has no forks and the goods on the fork shelves are unobstructed. The forward-moving electric stacker truck has a forward tilting function and is more user-friendly. The electric reach truck adopts a large-horsepower motor, which is moved back and forth, and the lift is more powerful. The large-capacity battery is more durable.

electric stacker truck

model LBCQD-10/15/20(C/H)-16/30/35/45-SB
Load (kg) 1000/1500/2000
Form of steel C/H

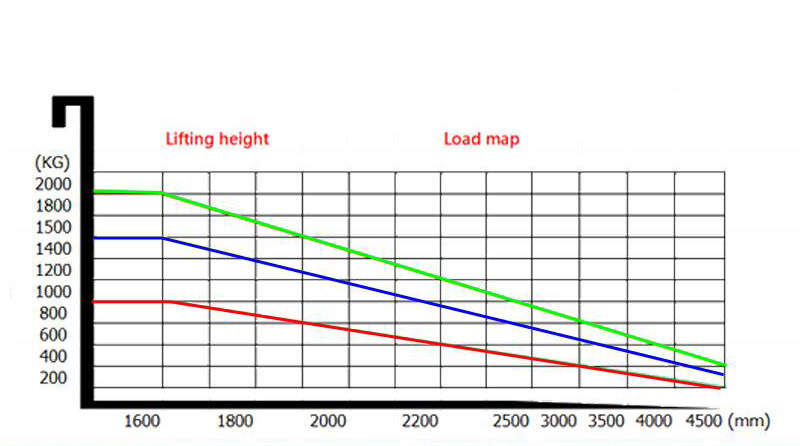

Lifting height (mm) 1600/2000/2500/3000/3500/4000/4500/5000
Frame static height (mm) 2090/1840/1840/2090/2340/2410/2090/2170
After lifting the total height (mm) 2360/3260/3260/3760/4260/4760/5260/5760
Load center distance (mm) 500
Before and after the tilt angle 3/6
Forward distance (mm) 500
Fork minimum clearance from the ground(mm) 40
Turning radius (mm) 1500
Minimum channel requirement (mm) 2560
Total length (No pedals) (mm) 2260/2360
Total body width (mm) 1000
Fork width (mm) 210-680

Number of front/rear wheels (*=drive wheel )

2/2+1*
Front / rear wheel size (mm) φ250*80/200*80/125*50
Track (mm) 1450
Rear wheel track (mm) 950
Fork size (forging) mm 1070*120*35
Lower fork the height from the ground (mm) 50-110
Lifting speed (full load / no load) (m / s) 0-0.12/0-0.2
Falling speed (full load / no load) (m / s) 0-0.2/0-0.28
Driving speed (full load / no load) (m / h) 5000/5500
Maximum gradient (full load / no load) (°) 5.0/8.0
Tire Polyurethane
Driving method Standing steer  type
Turn Mechanical steering
Braking method Electromagnetic brake
Battery (V/AH) 24/210-240
Lift the motor 3.3KW
Walking motor 1.5KW
Hydraulic oil 46#
Total Weight(KG) ≈1850/2150/2700
Noise level dB (A) <70

electric stacker truck 1

electric stacker truck 2

electric stacker truck 3

electric stacker truck 4

electric stacker truck 5

electric stacker truck 6

electric reach truck

electric reach truck 1

electric reach truck 2

electric reach truck 3

electric reach truck 4

electric reach truck 5

The gantry of the electric reach truck can be moved forward and backward to facilitate forklifting and has a wide range of applications. The counterbalance pallet stacker has no forks and the goods on the fork shelves are unobstructed. The forward-moving electric stacker truck has a forward tilting function and is more user-friendly. The electric reach truck adopts a large-horsepower motor, which is moved back and forth, and the lift is more powerful. The large-capacity battery is more durable.

electric reach truck 6

counterbalance pallet stacker

counterbalance pallet stacker 1

counterbalance pallet stacker 2

FAQ

1. How about the sample policy?

We can accept sample order for testing quality. But sample and express charge should be on customer’s account.

2. How long does it take to execute my order?

Please tell us the quantity and model number of the products you are about to order, so that we will give you a detailed schedule.

3. How can I know the completion of my order?

Upon receipt of the deposit, we will immediately arrange for the shippment, after the order is completed, we will also send you the detection images of your order before delivery for you to confirm.

4. Can you arrange to deliver the goods for us?

Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term, the buyer also can choose Air-transport or Ocean shipping for your requirement. When your orders reach your local nearest Sea port or River Port, the logistics company will inform you.

5. Can you guarantee your products?

Yes, we guarantee your 100% satisfaction on all our products.

Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.

6. Can I visit your company?

Of course. We always with great pleasure at your service. We have a showroom in Tianjin, China. If you want to order our products and visit our company, please contact us to make an appointment.

7. Do you offer custom design?

Custom design is surely available. We have very rich experience in customizing shelves.

counterbalance pallet stacker 3
