The warehouse lightweight loading all-electric stacker is flexibly debuted

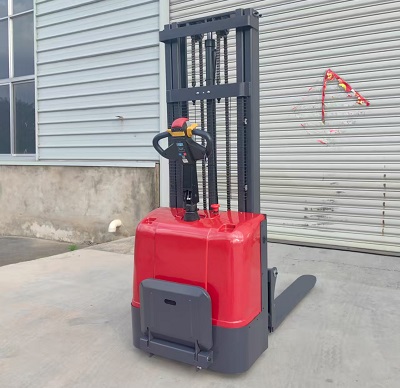

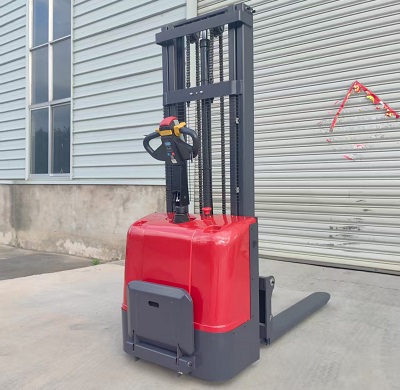

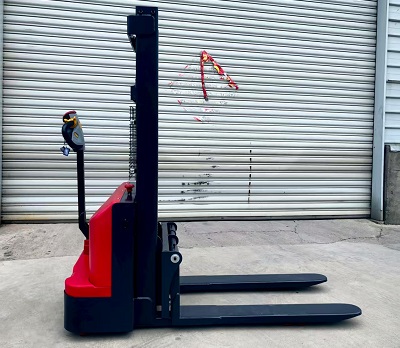

It is said that forklifts are "all-rounders" in the field of logistics loading and unloading, and are strong in cargo loading and unloading. But if you just want to carry out simple loading operations in the warehouse, is it a bit "overkill" to use forklifts? Especially when the warehouse space is already very tight and there is simply not enough space for forklift operations, the "universal" aura of forklifts will fade. So, is there a suitable model to fill this gap? The CDD-15 all-electric stacker truck is the answer, which can flexibly move through the warehouse and easily meet the needs of lightweight stacking (stacking).
01. Lightweight design, suitable for compact space operation
The all-electric stacker CDD-15 has a core advantage of light weight: the body length is about 1.8 meters and the width is about 0.8 meters. Compared with those counterbalance forklifts that require more than 4 meters in the operation channel, its operating width is only a little more than 2 meters, and the turning radius is less than 1.5 meters. At the same time, the CDD-15 model is available in two sizes, 1 ton and 1.5 tons, which can adapt to the storage needs of lightweight goods such as food and medicine. Its maximum lifting height is up to 3.6 meters, which is sufficient for stacking and height operations on low to medium shelves.
02. Flexible battery configuration to meet diverse usage needs
The all-electric stacker CDD-15 comes standard with a maintenance-free lead-acid battery, with the 1-ton model equipped with an 83Ah capacity battery equipped with a 10A charger, and the 1.5-ton model equipped with a 75Ah capacity battery, also equipped with a 10A charger. This configuration is fully capable of handling low-frequency, short-distance warehouse handling tasks, and the attractive price makes it extremely cost-effective. If you are worried about the high frequency of use, the lead-acid battery is difficult to support, the 1.5-ton model (PSE15L-C) can also be equipped with lithium batteries, with a capacity of 60Ah with a 20A charger, which can be used at any time, which can effectively solve the needs of emergency use, but the price will increase slightly.
03. Humanized detail design to optimize the operating experience
The CDD-15 all-electric stacker is equipped with an integrated handle, which allows you to monitor the working status of the vehicle in real time, such as battery level, vehicle failure, etc. at a glance. The classic long handle design not only reduces the operating force, but also allows the operator to maintain a certain safe distance from the car body and obtain a wider field of view, thereby improving work efficiency. The controller adopts CANbus communication technology and analog control technology respectively, which simplifies the line layout, enhances the reliability of the whole vehicle, and can also intuitively and quickly lock fault points for quick maintenance.
Of course, the CDD-15B type is not without its shortcomings. Affected by the characteristics of indoor operation, it has certain requirements for forked cargo space; Moreover, due to the design characteristics of its legs, there are specific standards for the bottom clearance during operation, if the bottom reserved space is less than 6 cm, the legs cannot enter the bottom for forklift operation. If you have a small shelf space, a reach truck or counterbalance stacker may be a better choice.
In addition, the CDD-15 type is a walk-behind operation model, which requires certain physical strength of the operator when transporting over long distances; If you want to be able to operate on it without having to walk, you can check our official website or contact our sales engineers for consultation.
-
