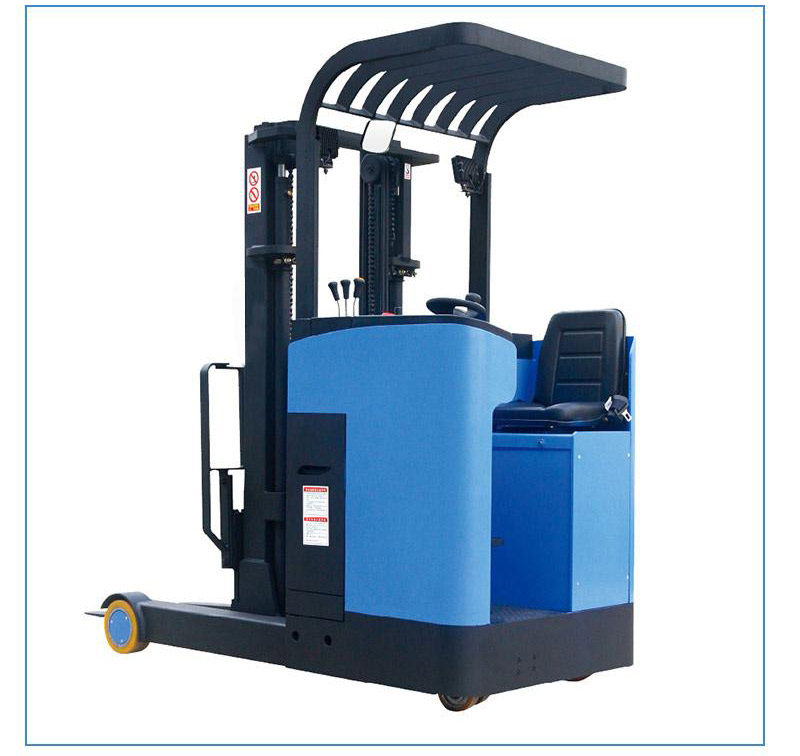

The fork can be tilted forward and the large forward electric stacker
warehouse lifting equipment
buy pallet stacker.jpg
small forklift for sale 1.jpg
small forklift for sale.jpg

The fork can be tilted forward and the large forward electric stacker

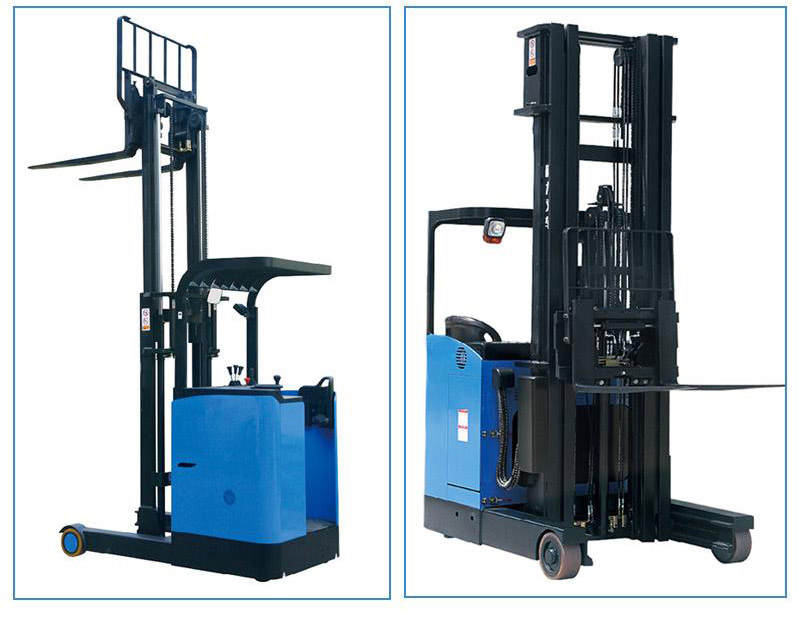

The forward-moving warehouse lifting equipment frame can be freely stretched and has a small turning radius. The vehicle with the front stacker buy pallet stacker is designed with a rear weight and the load can be up to 2500kg. The front forklift truck sm

Product Specification:
  • Price : -
  • Min. Order : 1

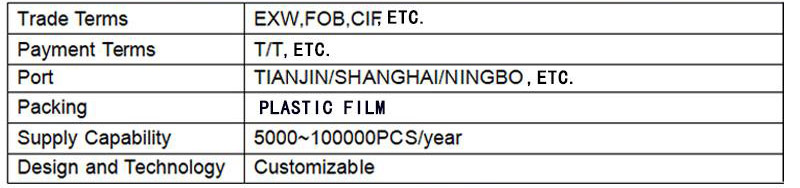

  • PaymentTerms : T/T、L/C、Western Union、Alipay
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
iconMay you like
  1. Video
  2. Description
  3. Reviews
  4. Download

The fork can be tilted forward and the large forward electric stacker

warehouse lifting equipment 5

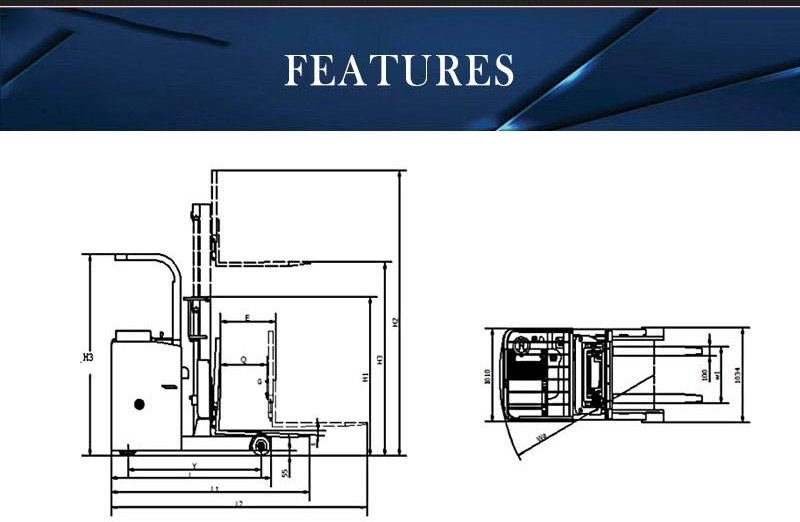

Model KLR10A KLR15A KLR20A
Maximum load capacity                  kg 1000 1500 2000
with load center at                Q mm 500 500 500
Maximum lifting height              H3 mm 1600 1600 1600
Reach length                        E mm 510 510 570
Tiltiing angle (up/down)            deg    3/5  3/5  3/5
Travel speed (without load)     km/h 5.3 5.3 5.3
Travel speed (with load)          km/h 5.3 5.3 5.3
Lifting speed (without load)    mm/s 120 120 120
Lifting speed (with load)   mm/s 92 92 92
Lowered speed (without load)   mm/s 173 173 173
Lowered speed (with load)   mm/s 530 530 530
Ascend slope ability (without load )                            % 8 8 8
Ascend slope ability (with load )               % 5 5 5
Weight (without battery)          kg 2050 2080 2140
Overall length of frame(mast no reach)       L mm 1780 1780 1880
Overall length (mast no reach)               L1 mm 2282 2282 2332
Overall length (mast reach) L2 mm 2860 2860 2980
Overall width of frame               B mm 1034 1034 1034
Overhead guard height   mm 2185 2185 2185
Mast lowered height         H1 mm 2200 2200 2200
Max height(mast lifted with backrest)        H2 mm 2638 2638 2638
Wheelbase                               Y mm 1450 1450 1550
Fork length    mm 1070 1070 1070
Fork width   mm 100 100 120
Fork lowered height         S mm 35 35 40
Fork spread width          mm 210-716 210-716 250-716
Min frounf height             mm 55 55 55
Turning radius    Wa mm 1815 1815 1906
width of theoretical  minimum  aisle for right-angle  stacking (1200x1000)   mm 2859 2859 2906
Front wheel                            mm 210*75 210*75 210*75
Drive wheel                            mm 230*75 230*75 230*75
Caster wheel                          mm 130*55 130*55 130*55
Wheel material                    polyurethane
Drive motor type              AC series motor
Rated output                           kw 1.5 1.5 1.5
Hoist motor type             DC series motor
Rated output                          kw 3 3 3
Voltage                              V 24 24 24
Capacity                             AH 270
Weight                                kg  245

warehouse lifting equipment 6

warehouse lifting equipment 7

buy pallet stacker 1

buy pallet stacker 2

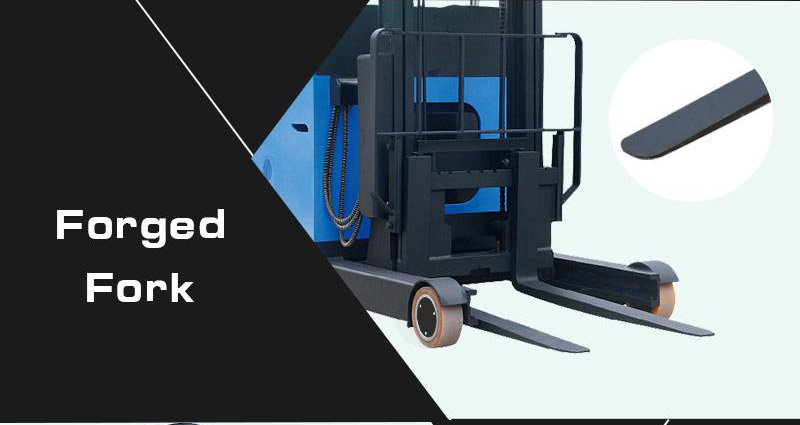

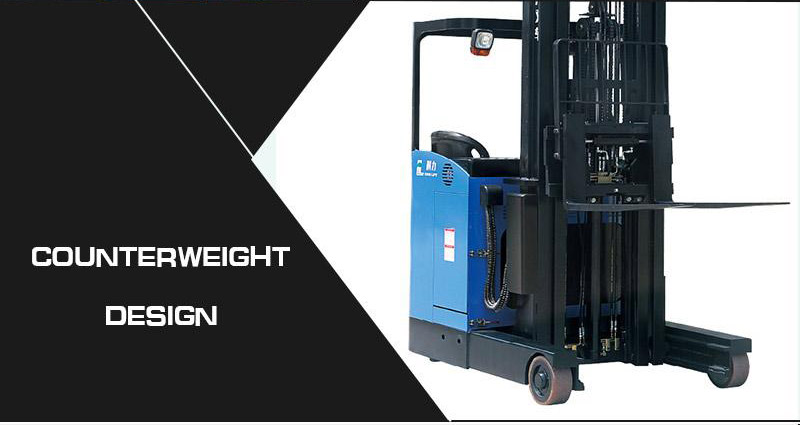

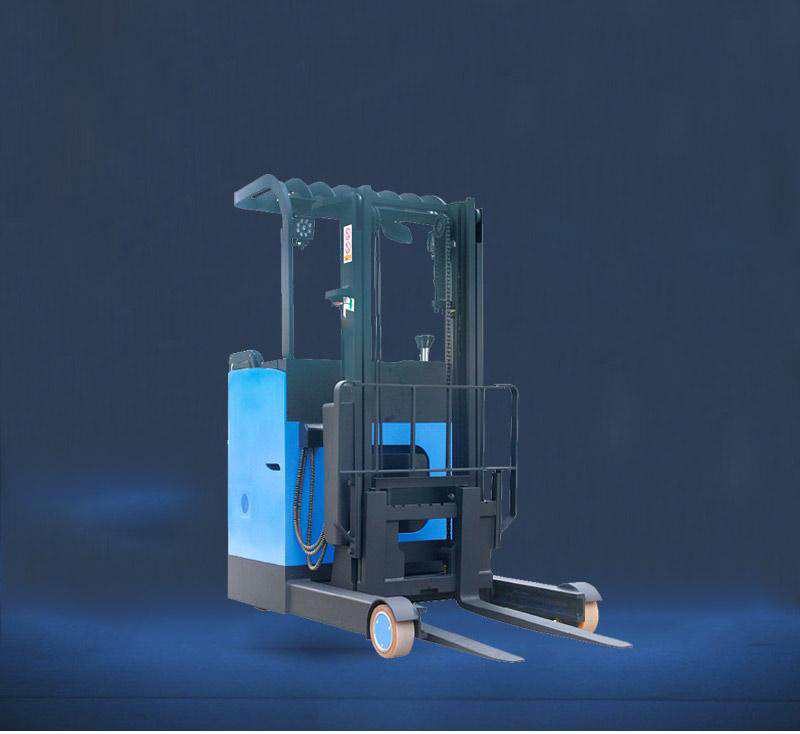

The forward-moving warehouse lifting equipment frame can be freely stretched and has a small turning radius. The vehicle with the front stacker buy pallet stacker is designed with a rear weight and the load can be up to 2500kg. The front forklift truck small forklift for sale has a standard fork with a forward tilting function for comfortable operation.

buy pallet stacker 3

buy pallet stacker 4

buy pallet stacker 5

buy pallet stacker 6

buy pallet stacker 7





small forklift for sale

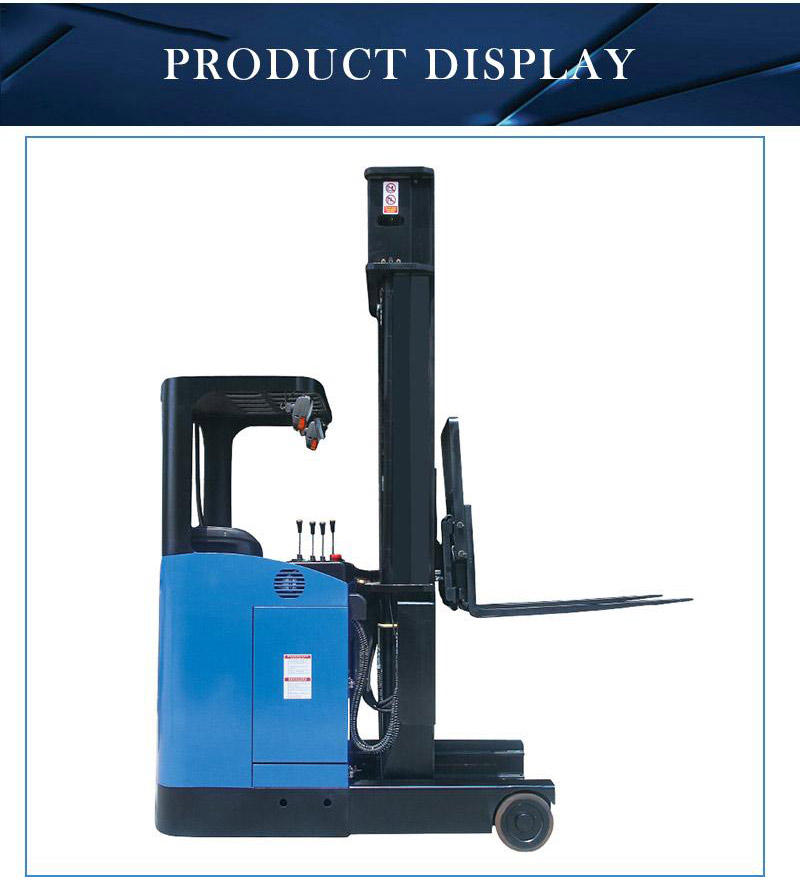

The forward-moving warehouse lifting equipment frame can be freely stretched and has a small turning radius. The vehicle with the front stacker buy pallet stacker is designed with a rear weight and the load can be up to 2500kg. The front forklift truck small forklift for sale has a standard fork with a forward tilting function for comfortable operation.

small forklift for sale 1

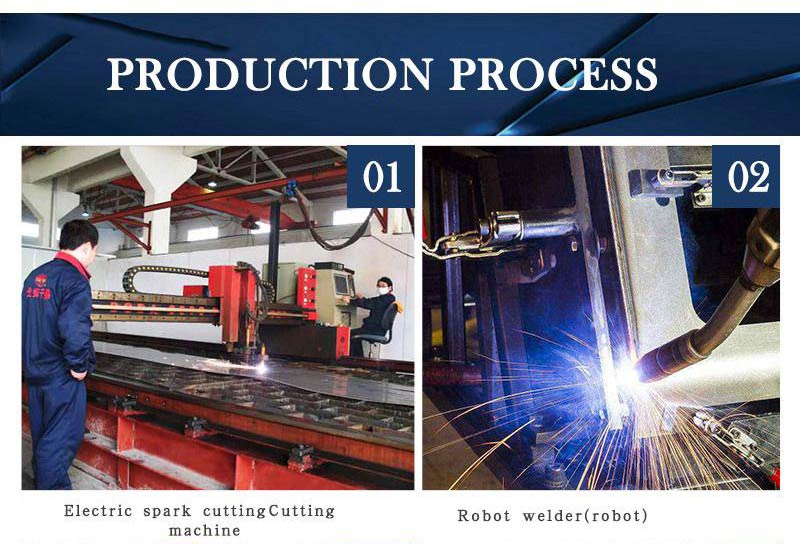

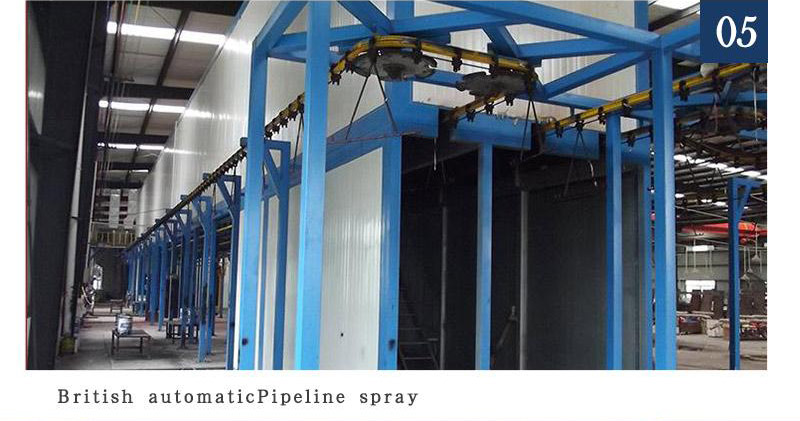

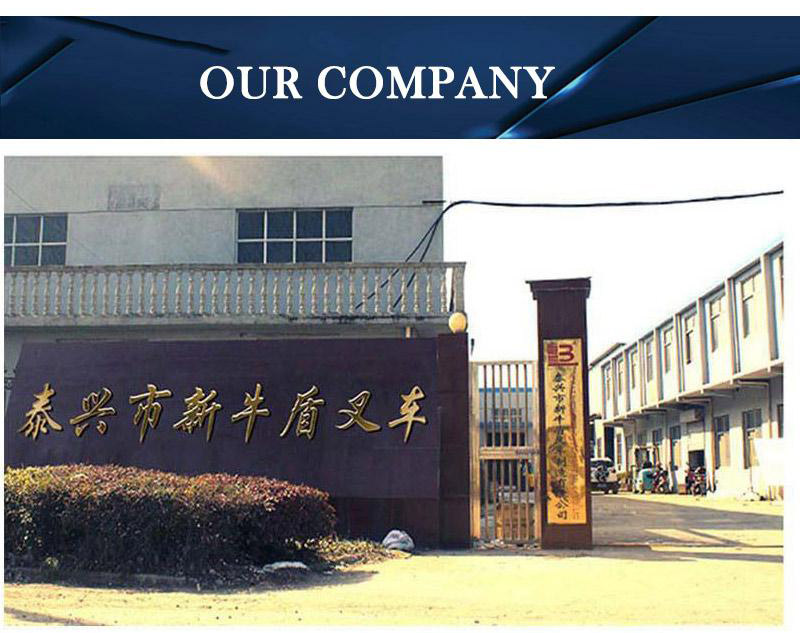

NEW NEWTON(TAIZHOU)FORKLIFT TRUCK CO. TLD is located in Taixing City, Jiangsu Province. It covers an area of about 4,000 square meters and has about 20 high-tech talents. It has more than 15 years of experience in storage equipment and has large-scale automatic assembly line equipment. It is specialized in electric storage equipment and forklifts. A global trading company that designs, manufactures and services, specializing in electric forklifts and vans. Strategic cooperation with nearly 15 large-scale commercial and logistics companies at home and abroad. The company has passed the ISO quality system international standard certification; obtained the "GS" and "CE" certification and the "TX" certification for various products; it has a number of patents granted by the State Intellectual Property Office.  It can produce 1 million products per year and has served more than 1000 customers worldwide. It can provide customers with “one-stop” services including design, manufacturing, testing and assembly. After 5475 days, our products have been praised as “0” by customers. "Safety accident", "0 emission energy saving", with "9000H quality assurance" and "7 * 24H after-sales service" high-quality products. The company regards “letting manpower to be a history” as our driving force. On this basis, we are constantly pursuing innovation and continuous breakthrough to provide more commercial value and environmental protection power storage equipment for the global market. NEW NEWTON has been widely received and favored by domestic and foreign customers for its beautiful appearance, high quality and comprehensive service, safe and reliable, and cost-effective products. The products have been exported to many countries and regions around the world. The international, professional and green standards have become the most respected forklift brand in the world. Our electric forklifts use zero discharge and zero pollution. The first time we truly solve the environmental problems of the forklift industry, it is especially suitable for the high environmental protection requirements of food, medicine, supermarket, cold chain, airport and other industries.

small forklift for sale 2

small forklift for sale 3

small forklift for sale 4

small forklift for sale 5

small forklift for sale 6

small forklift for sale 7

small forklift for sale 8

warehouse lifting equipment

warehouse lifting equipment 1

warehouse lifting equipment 2

warehouse lifting equipment 3

  1. How long is the warranty time?

    10000 working hours or 12 month, whichever comes first.

    2. How can I get the after-sales service?

    The global service network is still under construction, but if you have any questions or need

    professional support, you can contact us. We will try our best to solve your problem within 24

    hours and arrange for the delivery of spare parts within 48 hours.

    3. How about your warranty item?

    We can support you with original spare parts, and email or telephone assistance in the following

    days. If necessary, our experience engineer can go abroad to your place for technical support.

    4. How about your product quality?

    All our products are form the original manufactures and the quality is 100% guaranteed.

    5. Can I be your agent in my country?

    It’s OK if the order quantity is appropriate. We looks forward to long-term cooperation.

    6. What information should I let you know if I want to get a quotation?

    Lifting capacity

    Size

    Load

    Features

    Would be better if you have drawings of your piant.

    7. What about the lead time for mass production?

    Hoestly, it depends on the order quantity and specification and the season you place the order.  Within 30 days will be ok. Generally speaking, we suggest you start inquiry two months before the date.
