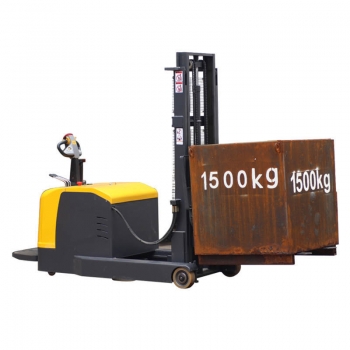

powered pallet stacker 1

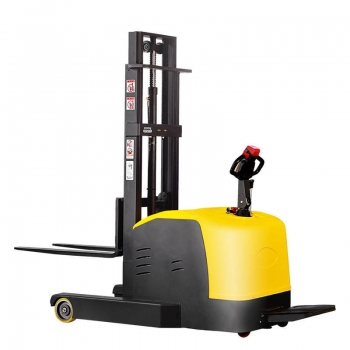

stacker forklift 1

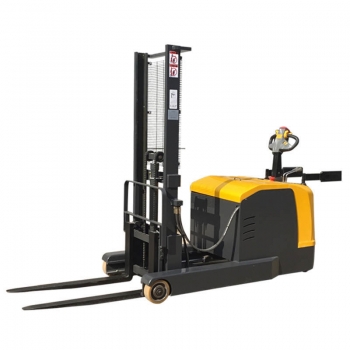

battery power operated stacker and power pallet stacker forklift

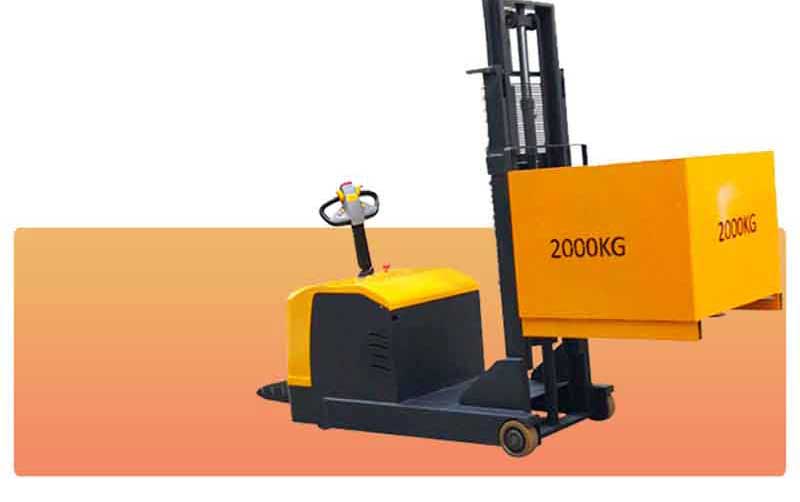

The forward-moving power stacker is a relatively common stacker forklift in industrial forklifts. Powered pallet stacker has good stability and its gantry can be moved forward.Full electric operation of the stacker forklift saves labor costs.

Product Specification:
  • Price : -
  • Min. Order : 1
  • PaymentTerms : T/T
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
iconMay you like
  1. Video
  2. Description
  3. Reviews
  4. Download

power stacker 5

model LBCQD-10/15/20(C/H)-16/30/35/45-SB
Load (kg) 1000/1500/2000
Form of steel C/H
Lifting height (mm) 1600/2000/2500/3000/3500/4000/4500/5000
Frame static height (mm) 2090/1840/1840/2090/2340/2410/2090/2170
After lifting the total height (mm) 2360/3260/3260/3760/4260/4760/5260/5760
Load center distance (mm) 500
Before and after the tilt angle 3/6

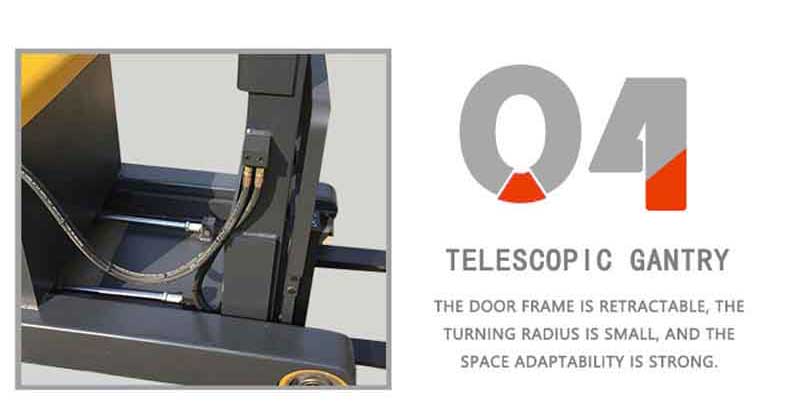

Forward distance (mm) 500
Fork minimum clearance from the ground(mm) 40
Turning radius (mm) 1500
Minimum channel requirement (mm) 2560
Total length (No pedals) (mm) 2260/2360
Total body width (mm) 1000
Fork width (mm) 210-680

Number of front/rear wheels (*=drive wheel )

2/2+1*
Front / rear wheel size (mm) φ250*80/200*80/125*50
Track (mm) 1450
Rear wheel track (mm) 950
Fork size (forging) mm 1070*120*35
Lower fork the height from the ground (mm) 50-110
Lifting speed (full load / no load) (m / s) 0-0.12/0-0.2
Falling speed (full load / no load) (m / s) 0-0.2/0-0.28
Driving speed (full load / no load) (m / h) 5000/5500
Maximum gradient (full load / no load) (°) 5.0/8.0
Tire Polyurethane
Driving method Standing steer  type
Turn Mechanical steering
Braking method Electromagnetic brake

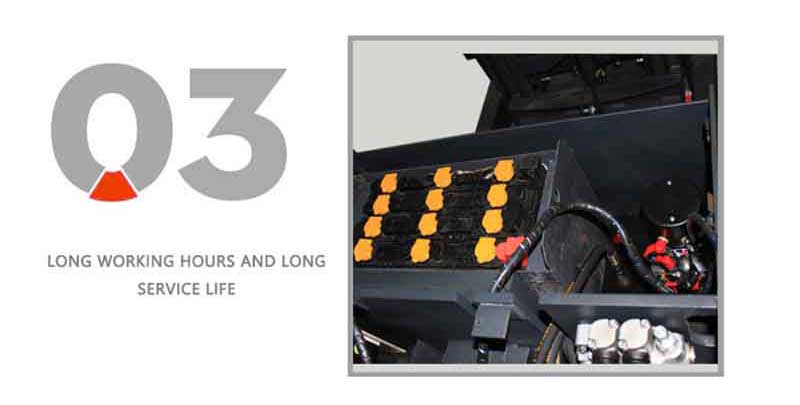

Battery (V/AH) 24/210-240
Lift the motor 3.3KW
Walking motor 1.5KW
Hydraulic oil 46#
Total Weight(KG) ≈1850/2150/2700
Noise level dB (A) <70

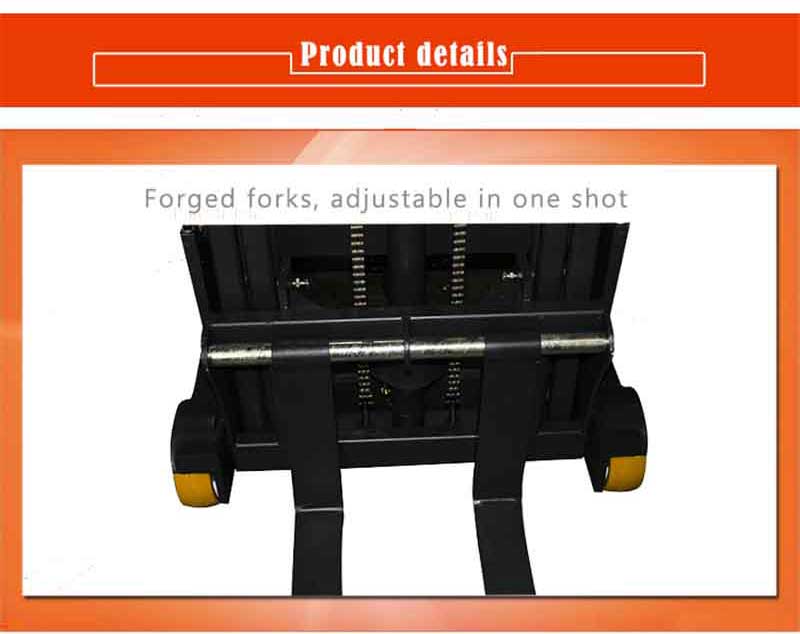

power stacker 6

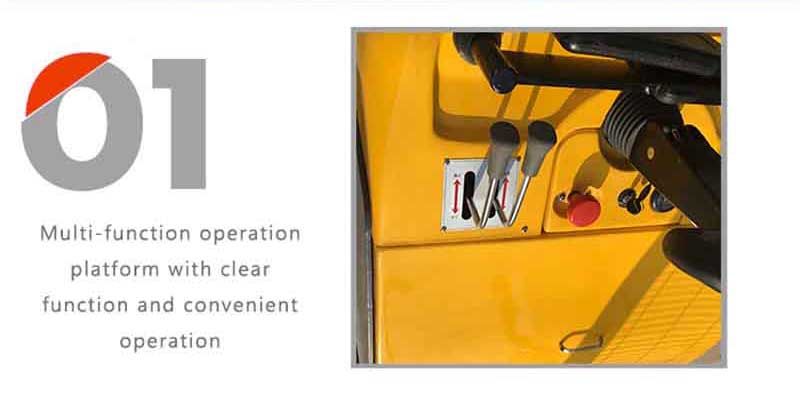

power stacker 7

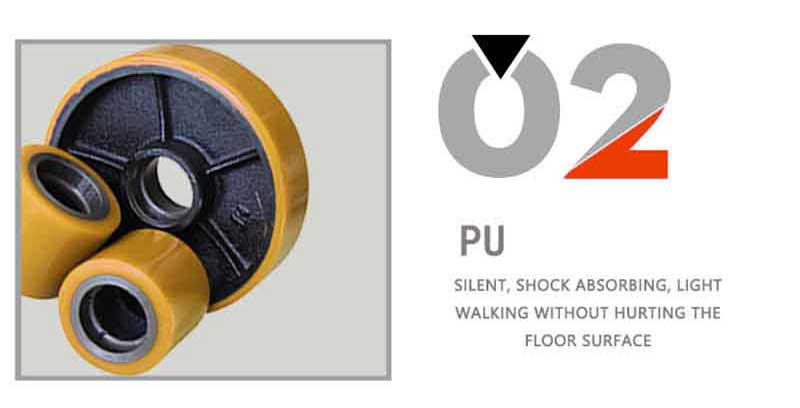

power stacker 8

power stacker 9

powered pallet stacker 1

powered pallet stacker 2

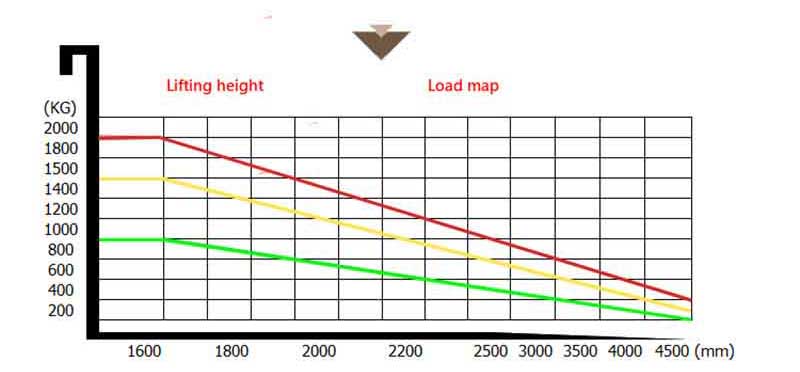

powered pallet stacker 3

powered pallet stacker 4

powered pallet stacker 5

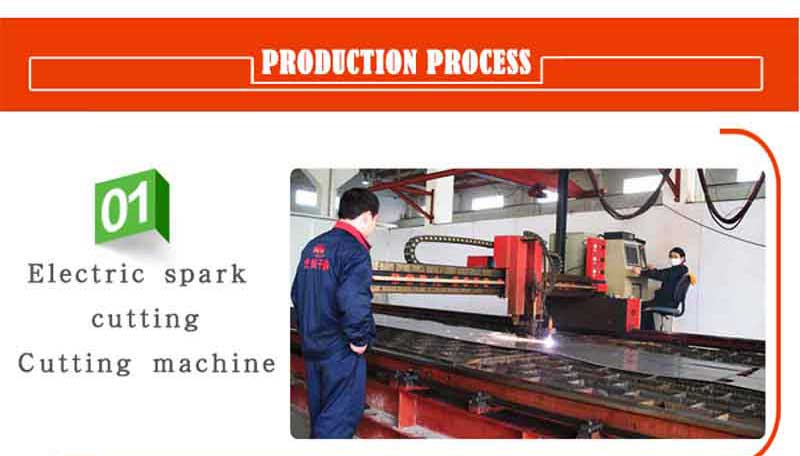

stacker forklift 1

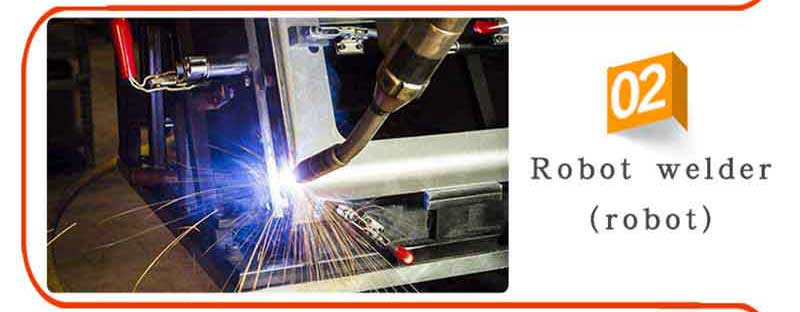

stacker forklift 2

stacker forklift 3

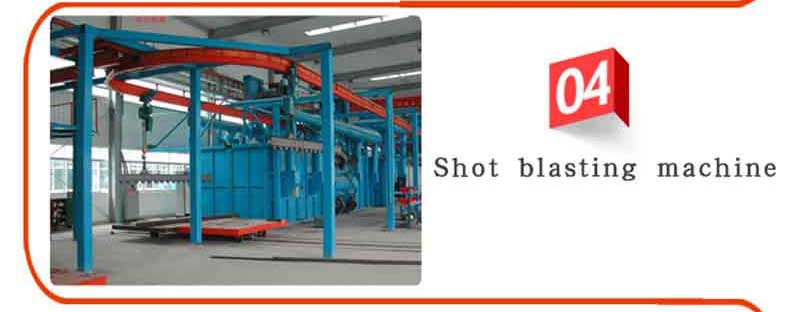

stacker forklift 4

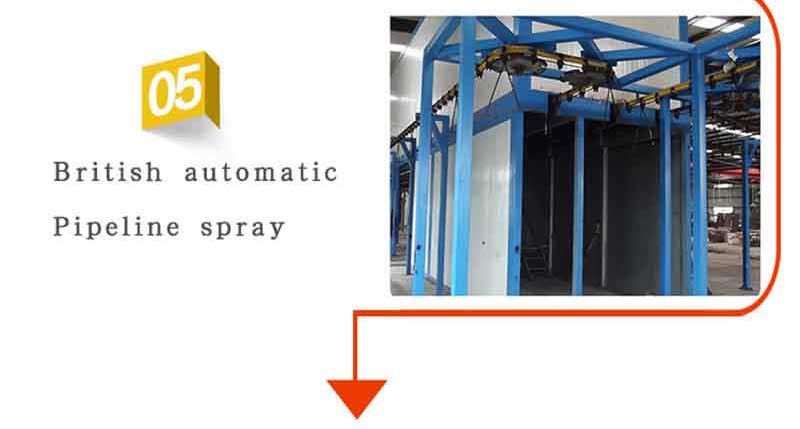

stacker forklift 5

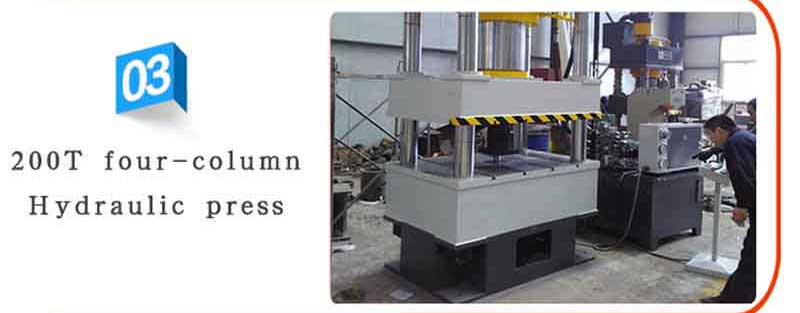

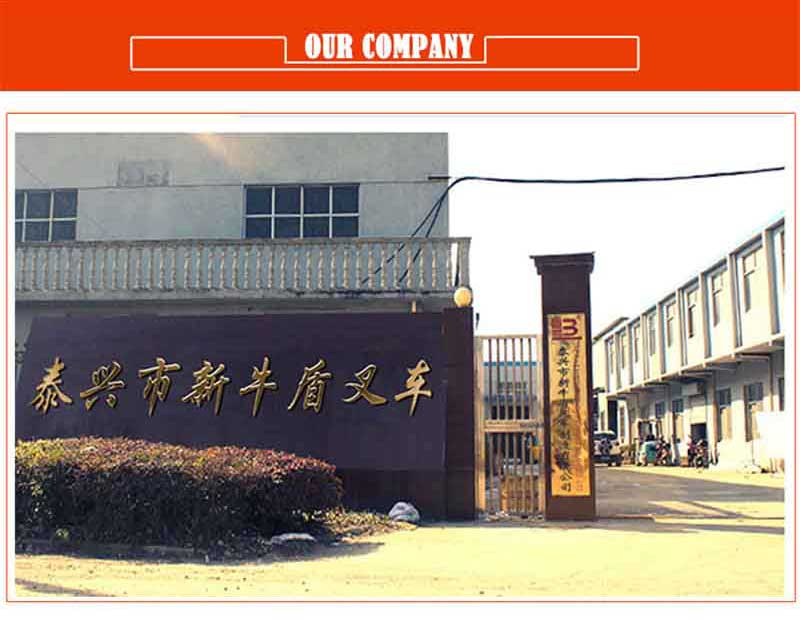

stacker forklift 6NEW NEWTON(TAIZHOU) FORKLIFT TRUCK CO.,Ltd. is a subsidiary of Tianjin Rixu Trading Co., Ltd. It is a high-tech enterprise. The brand NEW NEWTON is a newly launched series of warehousing and logistics equipment brand in recent years. The factory covers an area of more than 4,000 square meters and has a production workshop of more than 2,000 square meters. The company is engaged in the sales of forklift trucks for nearly 20 years and has been working on forklift production for nearly 10 years. In the past ten years, we have continuously developed and expanded our products. Nowadays, the mature new Newton has made customers more worry-free and save money. The company has high-tech technicians and has 100T hydraulic presses, large EDM cutting and machining centers, welding robot, large surface treatment machines, drying lines and fully automatic spray lines imported from the UK; the company’s equipment production capacity reaches the production level of 1 million sets of series of trucks and stackers.

stacker forklift 7

stacker forklift 8

stacker forklift 9

power stacker 1

power stacker 2

power stacker 3

1. How about the sample policy?

We can accept sample order for testing quality. But sample and express charge should be on customer’s account.

2. How long does it take to execute my order?

Please tell us the quantity and model number of the products you are about to order, so that we will give you a detailed schedule.

3. How can I know the completion of my order?

Upon receipt of the deposit, we will immediately arrange for the shippment, after the order is completed, we will also send you the detection images of your order before delivery for you to confirm.

4. Can you arrange to deliver the goods for us?

Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term, the buyer also can choose Air-transport or Ocean shipping for your requirement. When your orders reach your local nearest Sea port or River Port, the logistics company will inform you.

5. Can you guarantee your products?

Yes, we guarantee your 100% satisfaction on all our products.

Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.

6. Can I visit your company?

Of course. We always with great pleasure at your service. We have a showroom in Tianjin, China. If you want to order our products and visit our company, please contact us to make an appointment.

7. Do you offer custom design?

Custom design is surely available. We have very rich experience in customizing shelves.
