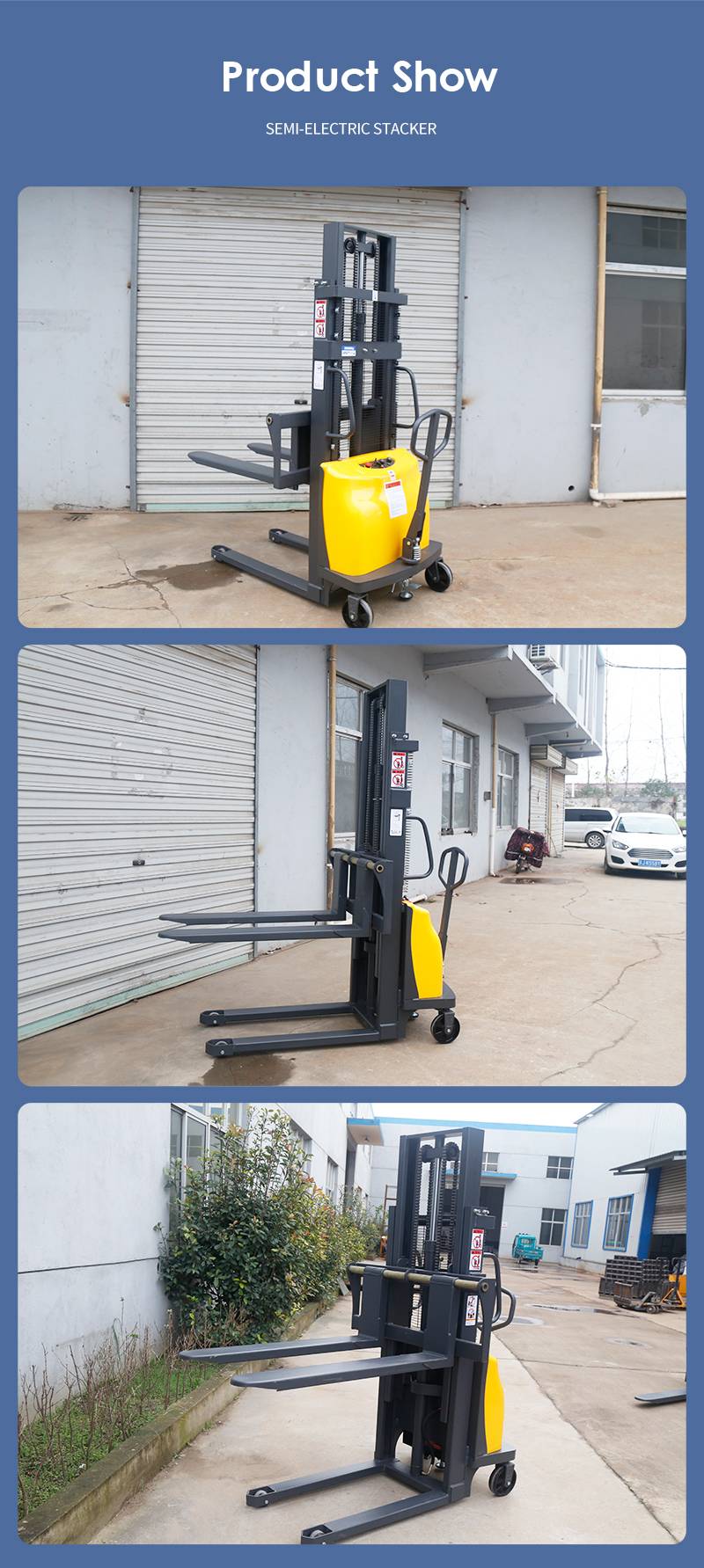

semi electric stacker truck from electric forklift manufacturers china
semi electric stacker truck 1
semi electric stacker truck 2
semi electric stacker truck 3
semi electric stacker truck 4
semi electric stacker truck 5
semi electric stacker truck 6

semi electric stacker truck from electric forklift manufacturers china

The electric stacker has a weight range of 1t-2t and a lifting height of 1-5m. Pallet stacker has low voltage protection function, which can protect the battery under low voltage condition and prolong its service life.

Product Specification:
  • Price : -
  • Min. Order : 1
  • PaymentTerms : T/T、L/C、Western Union、Alipay
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
iconMay you like
  1. Video
  2. Description
  3. Reviews
  4. Download

model

A/LBBDD-15 (C)-30

Load (kg) 1500

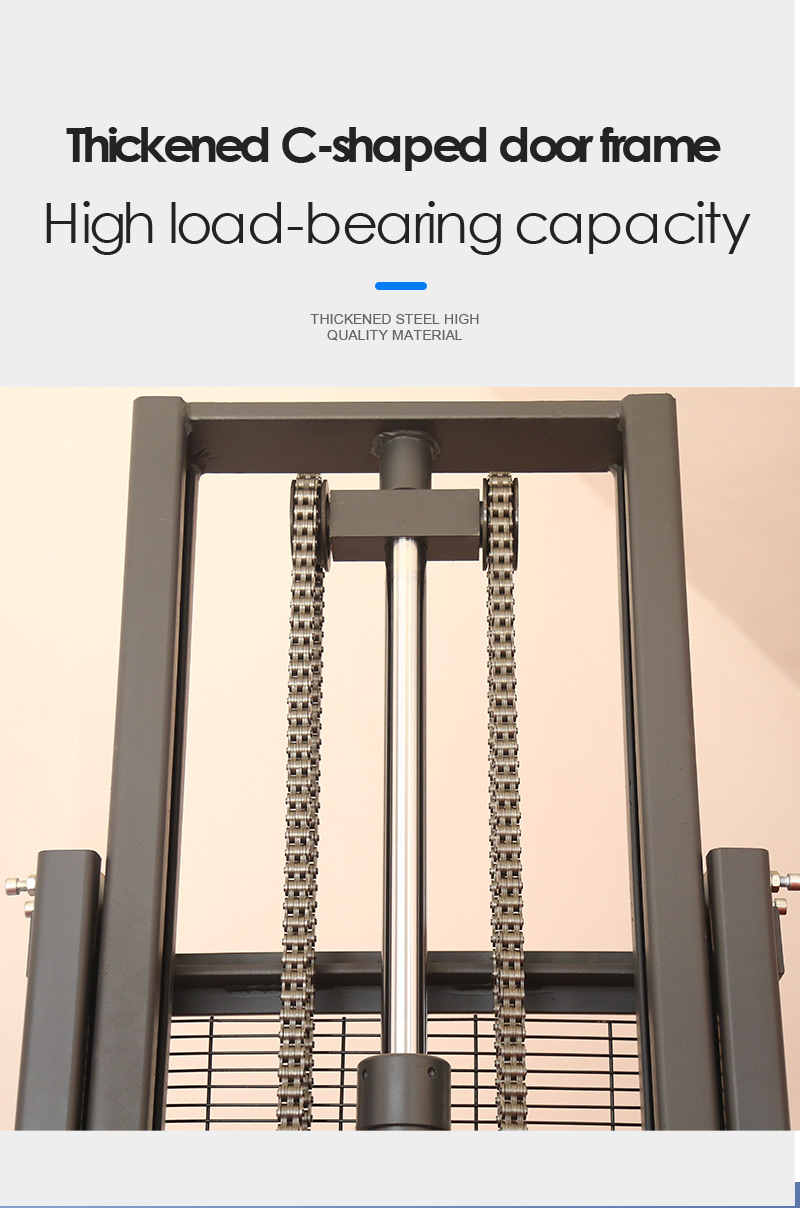

Form of steel C
Material

Q235

Drive mode/driving method Manual /walking
Load center distance (mm) 500
Axle load(before/after full load)kg 611/1319
Axle load(before/after no load)kg 325/105
number of front /rear wheels (X=drive) 2/2
Front track(mm)   Power stacker ,  Pallet stacker ,  electric stacker 720
Rear track(mm)    Power stacker ,  Pallet stacker ,  electric stacker 520
Lifting height (mm)  3000
Frame static height (mm) 2090
Maximum height of gantry operation  (mm) 3410
Load center distance (mm) 500
Fork minimum clearance from the ground(mm) 40
Turning radius (mm) 1425
Minimum channel requirement (mm) 2305
Total length(mm) 1735
Total body width (mm) 800
Fork width (mm)    Power stacker ,  Pallet stacker ,  electric stacker 320-1000
Fork size (mm)   Power stacker ,  Pallet stacker ,  electric stacker

1000*160*50

Lifting speed (full load / no load) (mm / s) 80/100
Falling speed (no load / full load)(mm/s) 120/150
Wheel       Power stacker ,  Pallet stacker ,  electric stacker  Nylon wheel
Wheel Size (Front / Rear) (mm) Φ180*50/φ80*70
Driving method  Power stacker ,  Pallet stacker ,  electric stacker walk
Drive mode   Power stacker ,  Pallet stacker ,  electric stacker Manual
Lifting method   Power stacker ,  Pallet stacker ,  electric stacker

Putt

Braking method    Power stacker ,  Pallet stacker ,  electric stacker mechanical
Battery (V/AH)  Power stacker ,  Pallet stacker ,  electric stacker

12/80

Lift the motor   Power stacker ,  Pallet stacker ,  electric stacker 1.6KW
Hydraulic oil  Power stacker ,  Pallet stacker ,  electric stacker 46#
Total Weight(KG)   Power stacker ,  Pallet stacker ,  electric stacker ≈400
Battery size(mm)  Power stacker ,  Pallet stacker ,  electric stacker 360*70*250
Noise level  dB (A)   Power stacker ,  Pallet stacker ,  electric stacker <70
